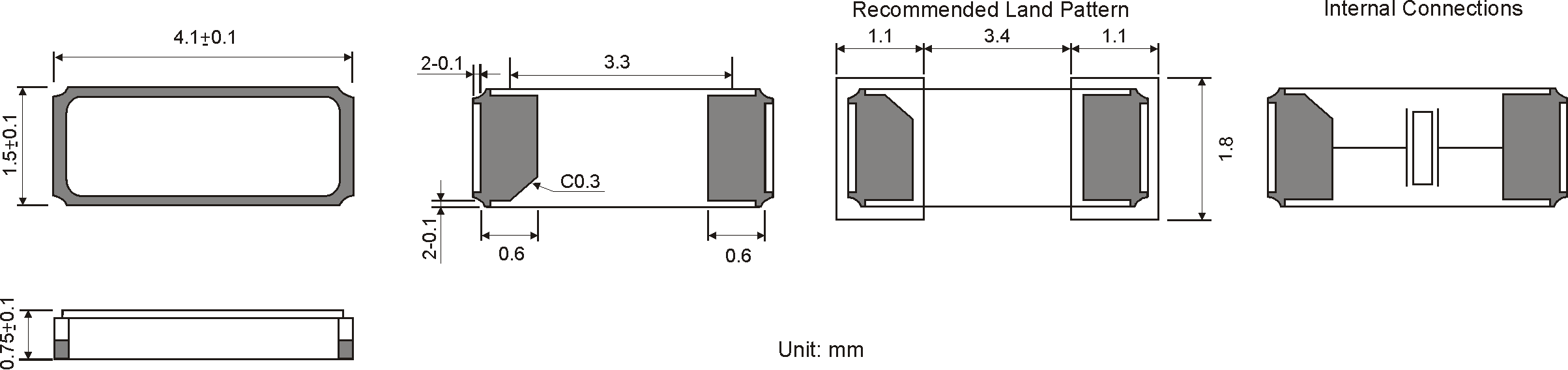

SMD UHRENQUARZ 4,1 x 1,5 mm 32.768 kHz

NUMBER OF SOLDER PADS

2

FREQUENCY TOLERANCES AT 25°C

±20 ppm (standard)
±10 ~ ±100 ppm (option)

LOAD CAPACITANCE (CL)

12.5 pF (standard)
6,7,9 and 10pF available on request

WORKING TEMPERATURE RANGE

-40/+85°C

RESONANCE RESISTANCE

80 kΩ max.

SHUNT CAPACITANCE C0

1.3 pF typ.

TURNOVER TEMPERATURE

+25°C ±5°C

PARABOLIC COEFFICIENT

-0.04 ppm/°C²

DRIVE LEVEL

0.2 µW typical (1.0 µW max.)

AGING

±3 ppm max. per year

INSULATION RESISTANCE

>500 MΩ DC/100V ±10%

STORAGE TEMPERATURE

-55°/+125°C

DELIVERY FORM

Tape and Reel (3.000 pcs per reel)
