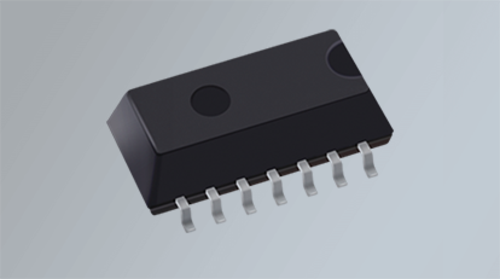

REAL TIME CLOCK MODULE PTRTC1010

  • Built in frequency adjusted 32.768 kHz crystal unit and DTCXO
  • Interface type: I2C-bus interface (400 kHz)
  • The various functions include full calendar, alarm, timer
  • 32.768kHz output with OE function (FOE and FOUT pins)
  • Auto correction of leap years (from 2000 to 2099)
  • Low current consumption: < 1.8μA/3V (Type)
  • Produkt Kategorie

    RTC

  • Package

    SOP-14pins

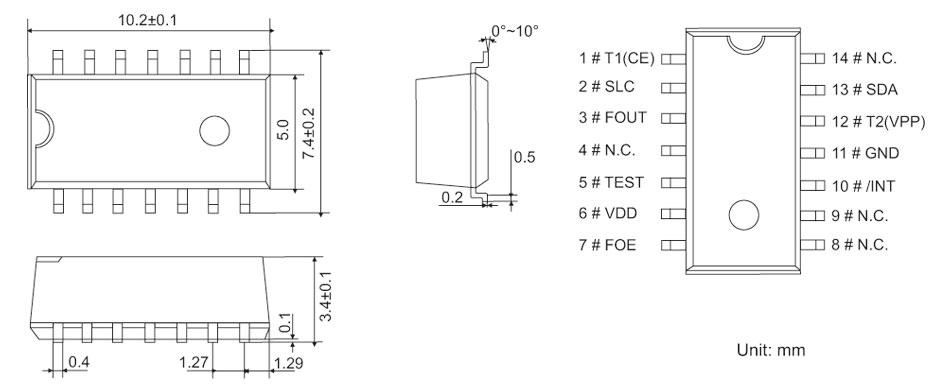

  • Dimensions in mm (W x D x H)

    10.2 x 7.4 x 3.4 mm

  • Frequency Range

    32.768 kHz

  • FREQUENCY STABILITY vs. TEMPERATURE (FST)

    ± 3.0 ppm (-10°~+60°C)
    ± 5.0 ppm (-40°~+85°C)

  • INITIAL FREQUENCY TOLERANCE

    ± 5.0 ppm max.

  • SUPPLY VOLTAGE

    1.6 V min, 3.0 V typ., 5.5 V max.

  • TEMPEMPAERATURE COMPENSATED VOLTAGE RANGE

    2.0 V min, 3.0 V typ., 5.5 V max.

  • WIDE TIMEKEEPER VOLTAGE RANGE

    1.4 V min, 3.0 V typ., 5.5 V max.

  • 32.768 kHz FREQUENCY OUTPUT FUNCTION

    CMOS output with control pin
    CL=30 pF
    Output selectable:(32.768kHz, 1024 Hz)

  • STANDARD OPERATING TEMPERATURE RANGE

    -40°~+85°C

  • STORAGE TEMPERATURE RANGE

    -55°~+150°C

  • DELIVERY FORM Tape & Reel

    (1.000 pcs per reel)

DATASHEET: REAL TIME CLOCK MODULE RTC
