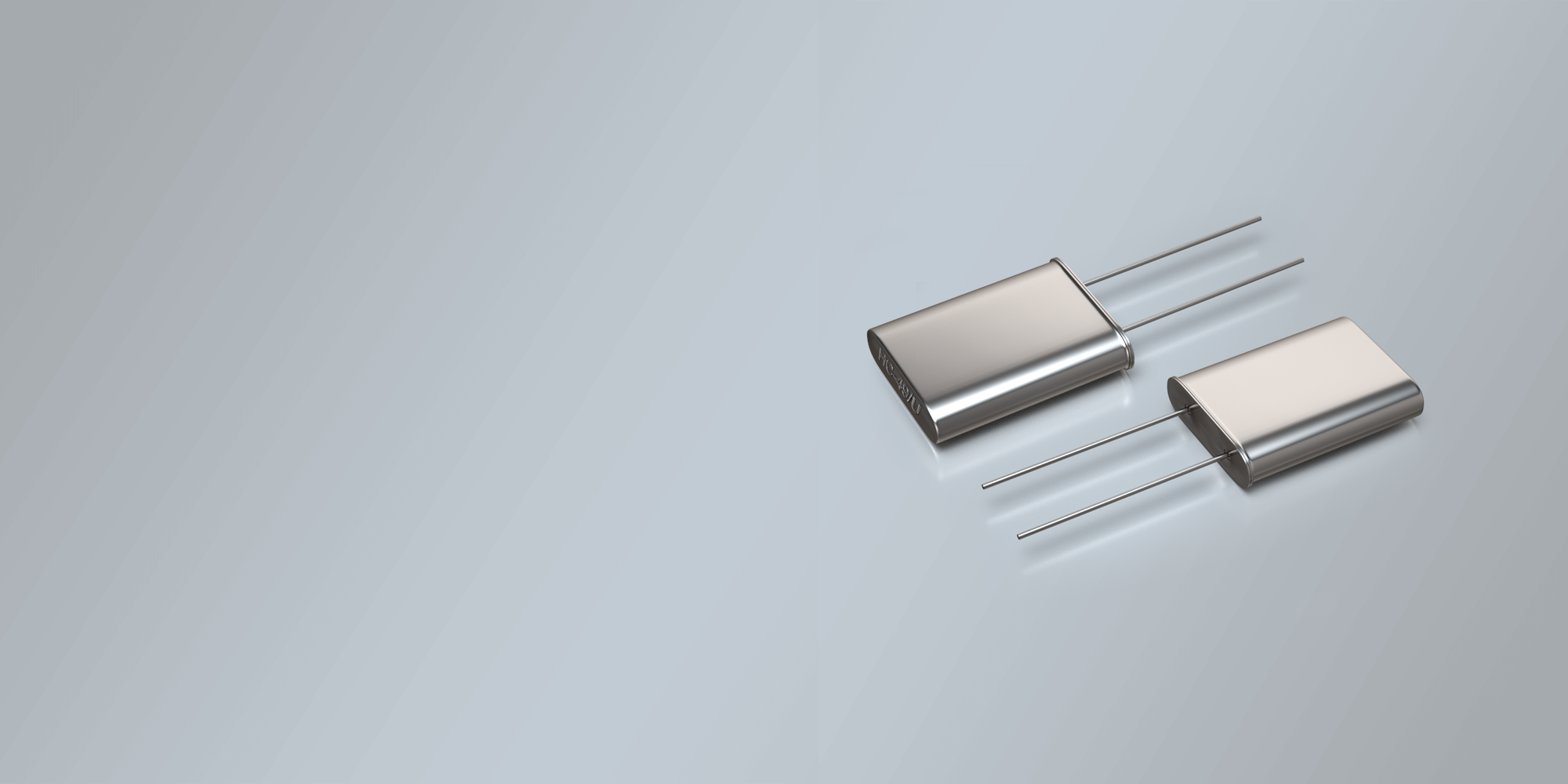

THT QUARZ HC-49/U 11,05 x 4,7 mm 1.6 - 200.0 MHz

THT QUARZ HC-49/U 11,05 x 4,7 mm 1.6 - 200.0 MHz

  • Top Performance und exzellente Langlebigkeit zum günstigen Preis
  • Erweiterter Temperaturbereich bis -40/+125°C verfügbar
  • Excellenter Taktsignal Generator für CPU's
  • Verwendung u.a. in Automotive, Wireless (WLAN, WIFI, Zigbee, ISM, KNX, etc.), IoT, M2M, GPS, Embedded, Industrial, Telecom, Medical, bzw. überall da, wo ein high performance low cost Quarz benötigt wird.
  • Product Name

    SMD Quartz Crystal

  • Gehäusetyp

    THT Metal

  • Abmessungen in mm (B x T x H)

    11.05 x 4.7 x 13.4 mm

  • Frequenzbereich

    1.80 - 200.00 MHz

  • NUMBER OF LEADS

    HC-49/U = 2 leads (standard)
    HC-49/3U = 3 leads (optional)

  • SMD-VERSION

    Available with bent leads and metal jacket

  • PACKAGE HEIGHT

    13.46 mm (standard)
    10.7 mm (optional)

  • FREQUENCY RANGES (SEPARATED)

    1.8432 ~ 40.0 MHz AT-Fundamental
    20.0 ~ 40.0 MHz BT-Fundamental
    23.0 ~ 100.0 MHz 3th Overtone
    60.0 ~ 150.0 MHz 5rd Overtone
    120.0 ~ 200.0 MHz 7th Overtone

  • FREQUENCY TOLERANCES AT 25°C

    ±10 ppm ~ ±50 ppm

  • RESONACE RESISTANCE

    100 Ω max. (1.8432 MHz = 800 Ω max.)

  • LOAD CAPACITANCE (CL)

    6 pF ~ 50 pF or Series

  • WORKING TEMPERATURE RANGES

    0/+50°C ~ -40/+125°C

  • SHUNT CAPACITANCE C0

    7 pF max.

  • AGING

    ±3 ~ ±5 ppm per year standard (±2 ppm available as option)

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • STORAGE TEMPERATURE

    -55°+125°C

  • DELIVERY FORM THT DELIVERY FORM SMD

    Bulks standard
    Tape and Reel (1000 pcs per reel)

  • OPTIONS FOR THT

    Insulator
    Cutted leads
    Tape and Reel (1000 pcs per reel)

  ±5 ppm ±10 ppm ±15 ppm ±20 ppm ±30 ppm ±50 ppm ±100 ppm
0/50 °C
-10/60 °C
0/70 °C
-20/70 °C
-40/85 °C
-40/125 °C
THT QUARTZ CRYSTAL HC-49/U 11.05 x 4.7mm

DATASHEET: THT QUARTZ CRYSTAL HC-49-U-3U

THT QUARTZ CRYSTAL HC-49-U-3U
