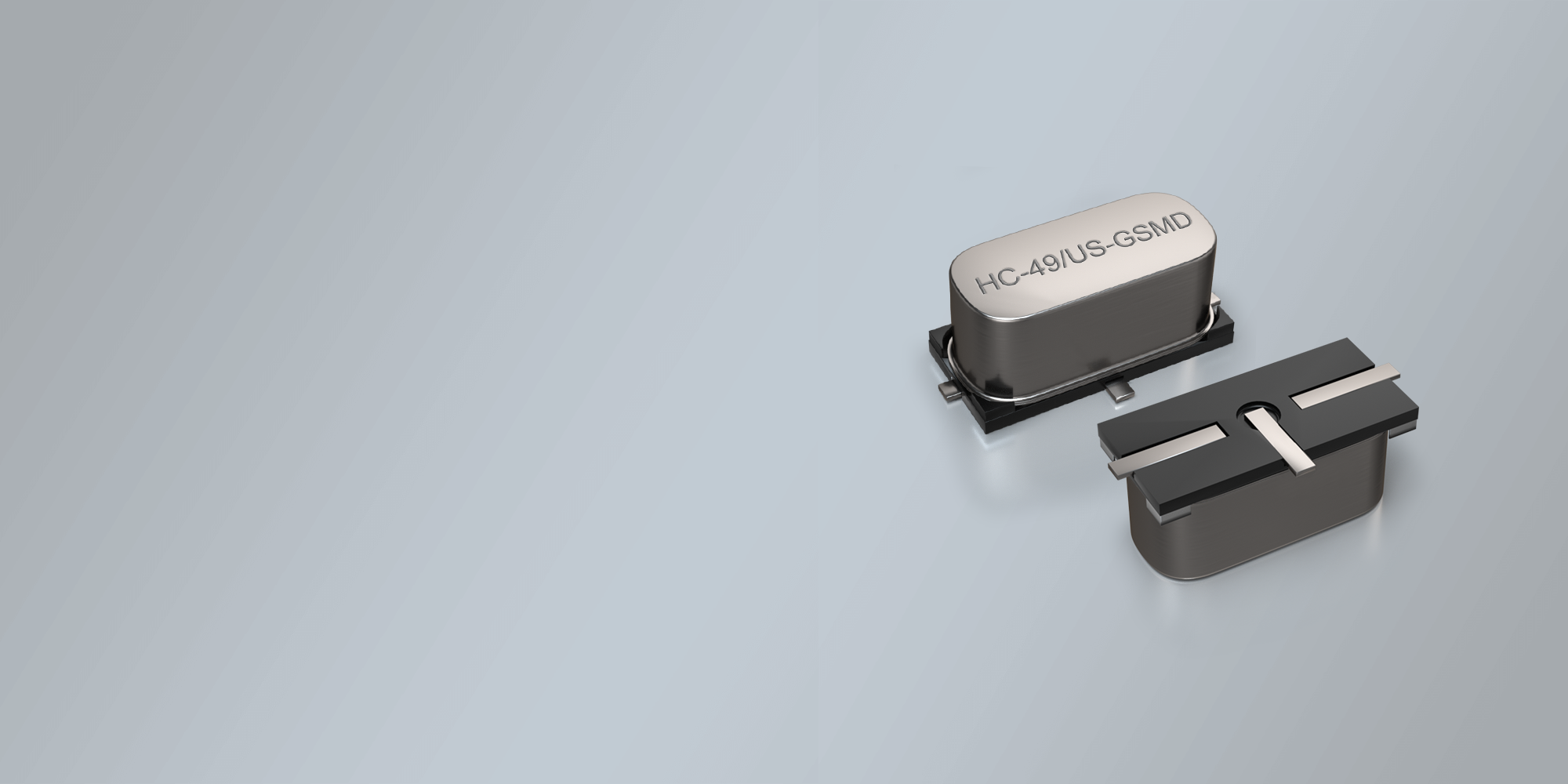

SMD QUARZ HC-49/US GSMD 3.5 - 80.0 MHz

SMD QUARZ HC-49/US GSMD 3.5 - 80.0 MHz

  • SMD Schwingquarz HC-49/US-SMD
  • Sehr hohe Zuverlässigkeit zum günstigen Preis
  • 3-Pad Gehäuse erhältlich
  • Low profile - 3,2 und 3,0 mm Gehäusegrößen verfügbar
  • Erweiterter Temperaturbereich bis -40/+125°C verfügbar
  • Product Name

    Quartz Crystal

  • Gehäusetyp

    SMD Metal

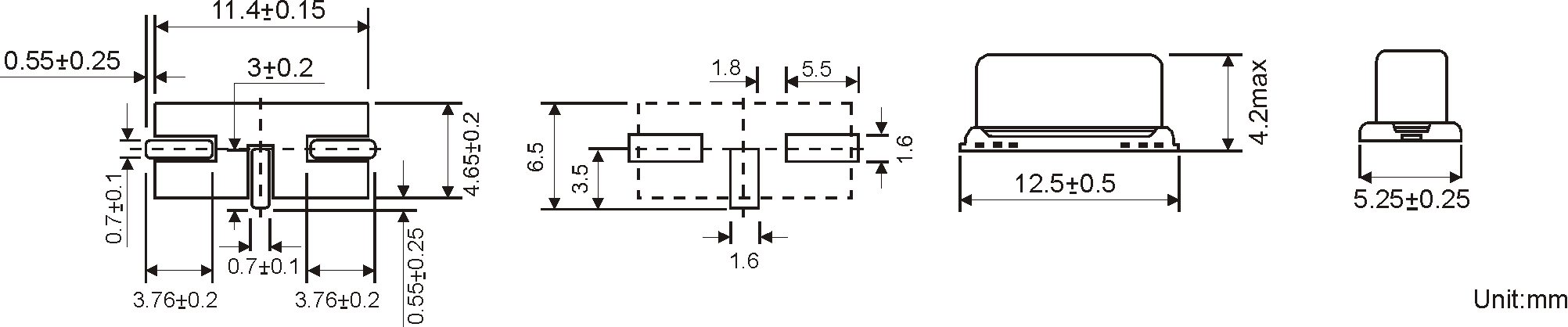

  • Abmessungen in mm (B x T x H)

    11.05 x 4.7 x 4.2 mm

  • Frequenzbereich

    3.50 - 80.00 MHz

  • NUMBER OF PINS

    3 (middle pin for grounding)

  • FREQUENCY RANGES (SEPARATED)

    3.5 ~ 40.0 MHz <em>AT-Fundamental </em>
    24.0 ~ 40.5504 MHz <em>BT-Fundamental</em>
    24.576 ~ 80.0 MHz 3rd <em>Overtone</em>

  • FREQUENCY TOLERANCES AT 25°C

    ±5 ppm ~ ±50 ppm

  • LOAD CAPACITANCE (CL)

    6 pF ~ 50 pF

  • WORKING TEMPERATURE RANGES

    0/+50°C ~ -40/+125°C

  • SHUNT CAPACITANCE C0

    7 pF max.

  • DRIVE LEVEL

    100 µW typical
    (0.01 mW ~ 1 mW possible on request)

  • AGING

    ±3 ~ ±5 ppm per year standard
    (±2 ppm available as option)

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • STORAGE TEMPERATURE

    -55°+125°C

  • DELIVERY FORM

    Tape and Reel (1.000 pcs per reel)

  ±5 ppm ±10 ppm ±15 ppm ±20 ppm ±30 ppm ±50 ppm
0/50 °C
-10/60 °C
0/70 °C
-20/70 °C
-40/85 °C
-40/125 °C
SMD QUARTZ CRYSTAL HC-49/US-GSMD 3.5 - 80.0MHz
  • Consumer Electronics
  • Networking
  • Industrial
  • RFID/NFC
  • IoT
  • Wearables
  • HD & Storage
  • Mobile Communication
  • PC/PC Peripheral/IT
  • WiMAX, WLAN, Wi-Fi
  • Embeded
  • Automotive

DATASHEET: SMD QUARTZ CRYSTAL HC-49-US-GSMD 3 PINS

SMD QUARTZ CRYSTAL HC-49-US-GSMD 3 PINS
