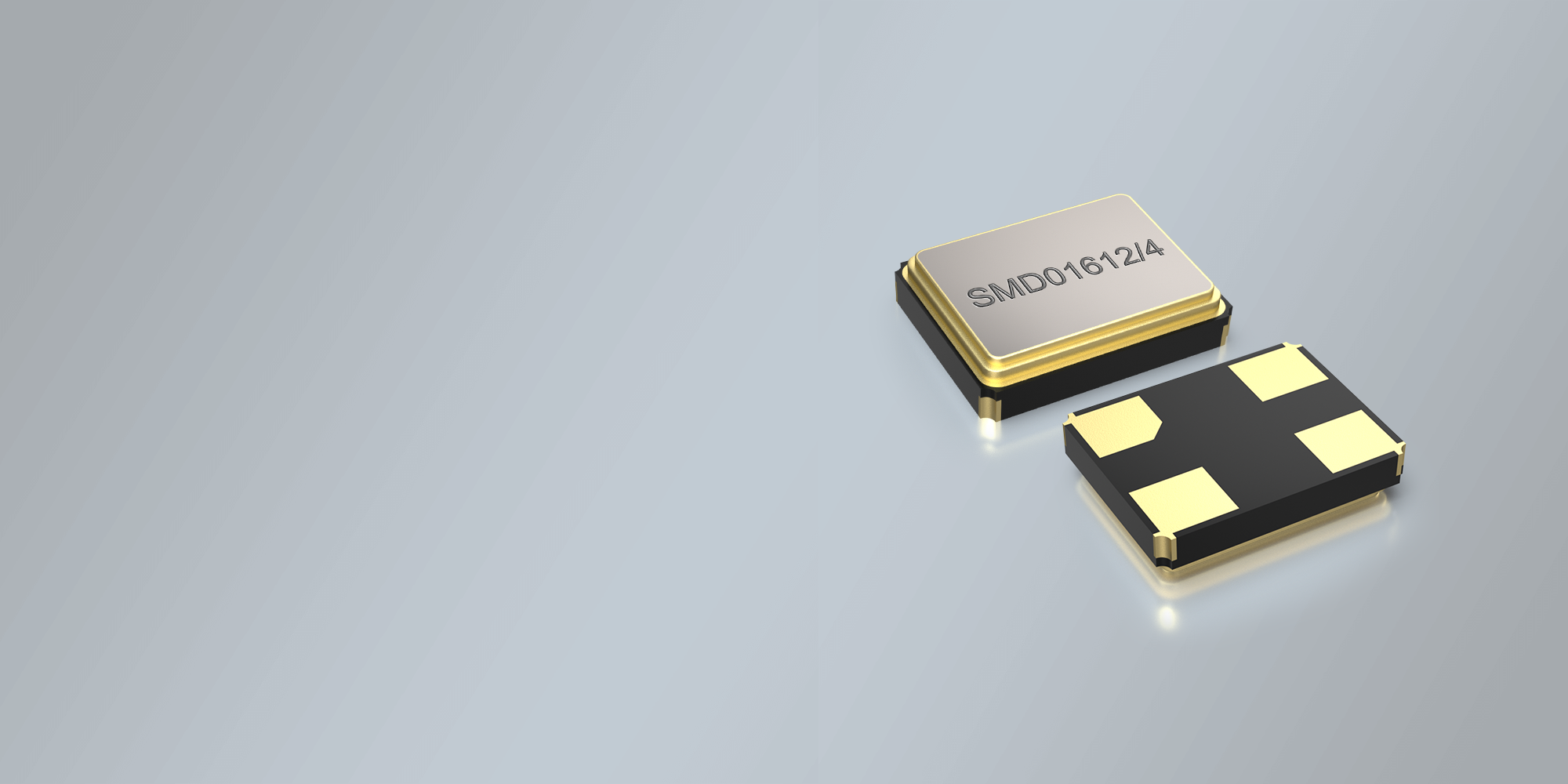

SMD QUARZ 1,6 x 1,2 mm 24.0 - 285.0 MHz
- SMD Schwingquarz 1,6 x 1,2 mm im Keramikgehäuse
- Top Performance und exzellente Langlebigkeit zum günstigen Preis
- Widerstandreduziertes Quarzdesign (LRT-Technologie) für schnelles und sicheres Anschwingen
- Frequenztoleranz von ±10ppm@+25°C, enge Temperaturstabilitäten und minimale Alterungswerte lieferbar
- Verwendung u.a. in Wearables, Automotive, Wireless (WLAN, WIFI, Zigbee, ISM, KNX, etc.), IoT, M2M, GPS, Embedded, Industrial, Telecom, Medical, bzw. überall, wo ein high performance low cost Quarz benötigt wird.
-
Produkt Name
SMD Quartz Crystal
-
Package
SMD Ceramic/4pad
-

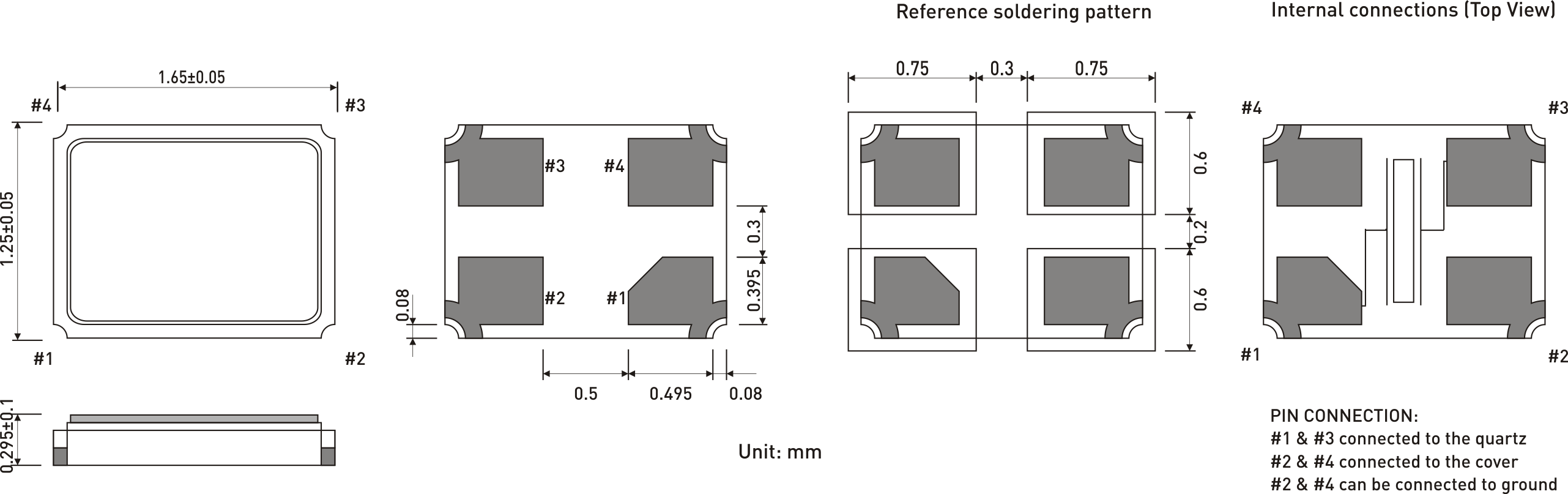

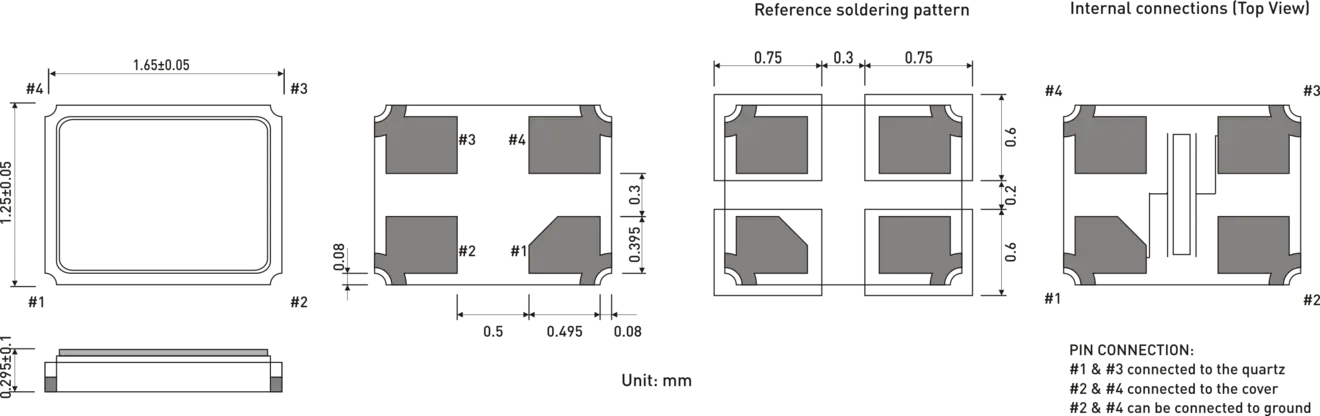

Dimensions in mm (W x D x H)
1.6 x 1.2 x 0.3 mm
-
Frequency Range
24.00 - 285.00 MHz
-
NUMBER OF SOLDER PADS
4
-
STANDARD FREQUENCIES
24.0 MHz / 26.0 MHz / 32.0 MHz /
37.4 MHz / 38.4 MHz / 40.0 MHz /
48.0 MHz / 50.0 MHz -
FREQUENCY TOLERANCES AT 25°C
±10 ppm ~ ±50 ppm
-
LOAD CAPACITANCE (CL)
6 pF ~ 50 pF (12 pF standard), or Series
-
WORKING TEMPERATURE RANGES
-10/+60°C ~ -40/+125°C
-
DRIVE LEVEL
100 μW typ. / 200 μW max.
-
AGING
±1 ppm ~ ±3 ppm max. per year
-
EQUIVALENT SERIES RESISTANCE (ESR)
24.0 ~ 32.0 MHz = 200 Ω
32.0 ~ 38.0 MHz = 100 Ω
38.0 ~ 80.0 MHz = 80 Ω
80.0 ~ 285.0 MHz = 60 Ω -
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
-
STORAGE TEMPERATURE
-55°+125°C
-
DELIVERY FORM
Tape and Reel (3.000 pcs reel)
±10 ppm | ±15 ppm | ±20 ppm | ±30 ppm | ±50 ppm | ±100 ppm | |
---|---|---|---|---|---|---|
-10/60 °C | • | • | • | • | • | • |
-20/70 °C | • | • | • | • | • | • |
-40/85 °C | • | • | • | • | • | |
-40/105 °C | • | • | • | |||
-40/125 °C | • |
