SMD QUARZ 6,0 x 3,5 mm 8.0 - 80.0 MHz
- SMD Schwingquarz 6,0 x 3,5 mm
- Hohe Zuverlässigkeit zum günstigen Preis
- Erweiterter Temperaturbereich bis -40/+125°C verfügbar
- Frequenztoleranz von ±10ppm@+25°C, enge Temperaturstabilitäten und minimale Alterungswerte lieferbar
- Exzellenter Taktsignal Generator für CPU's
- Qualifiziert für den Einsatz in Automotive Anwendungen
- Allgemeine Daten
- Temperaturstabilität

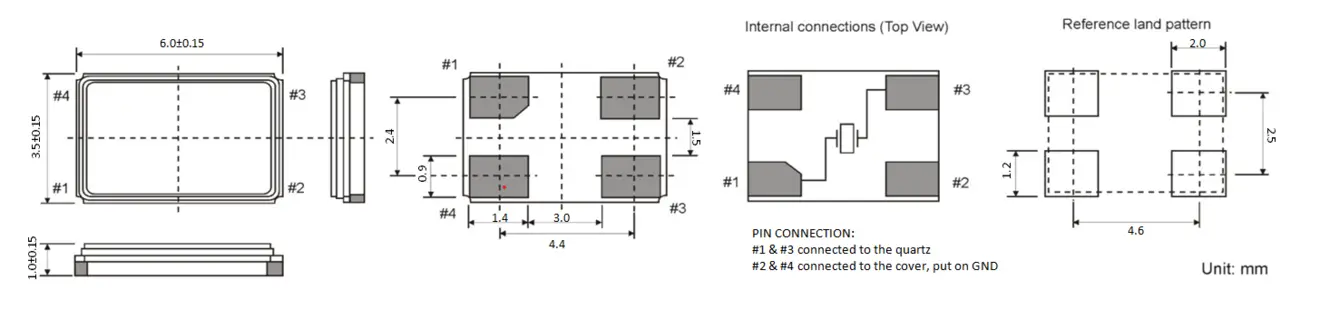

- Abmessungen
- Konfigurator Produktanfrage
- Konfigurator Musteranfrage
Produkt Name
SMD Quartz Crystal
Package
SMD Ceramic/4pad
Dimensions in mm (W x D x H)
6.0 x 3.5 x 1.1 mm
Frequency Range
8.00 - 80.00 MHz
FREQUENCY RANGES (SEPARATED)
8.00 ~ 50.0 MHz AT-FUNDAMENTAL
40.0 ~ 80.0 MHz 3rd OvertoneFREQUENCY TOLERANCES AT 25°C
±5 ppm ~ ±50 ppm
LOAD CAPACITANCE (CL)
6 pF ~ 50 pF or Series
WORKING TEMPERATURE RANGES
0/+50°C ~ -40/+125°C
SHUNT CAPACITANCE C0
7 pF max.
DRIVE LEVEL
100 µW typ. / 200 µW max. (500 µW available on request)
AGING
2 ppm per year standard (±1 ppm available as option)
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE
-55°+125°C
DELIVERY FORM
Tape and Reel (1.000 pcs per reel)
STANDARD FREQUENCIES
8.0000 MHz / 8.9120 MHz / 9.509375 MHz / 9.8304 MHz / 9.984375 MHz / 10.0000 MHz / 10.2400 MHz / 10.2450 MHz / 10.3680 MHz / 10.7000 MHz / 10.7675 MHz / 11.0000 MHz / 11.0592 MHz / 11.2896 MHz / 12.0000 MHz / 12.2880 MHz / 12.6285 MHz / 12.0000 MHz / 12.728125 MHz / 12.8000 MHz / 13.0000 MHz / 13.0625 MHz / 13.1250 MHz / 13.2256 MHz / 13.22653 MHz / 13.5000 MHz / 13.5400 MHz / 13.5600 MHz / 13.56797 MHz / 13.56875 MHz / 13.581445 MHz / 13.8240 MHz / 14.0000 MHz / 14.31818 MHz / 14.4000 MHz / 14.4150 MHz / 14.7456 MHz / 14.8000 MHz / 14.8500 MHz / 15.0000 MHz / 15.3600 MHz / 15.9950 MHz / 16.0000 MHz / 16.1280 MHz / 16.3680 MHz / 16.3840 MHz / 16.6000 MHz / 16.6660 MHz / 16.6667 MHz / 16.8000 MHz / 16.8960 MHz / 16.9344 MHz / 17.4840 MHz / 18.0000 MHz / 18.078333 MHz / 18.081042 MHz / 18.089583 MHz / 18.0910 MHz / 18.1151 MHz / 18.121875 MHz / 18.2000 MHz / 18.4320 MHz / 18.6900 MHz / 19.2000 MHz / 19.4400 MHz / 19.6608 MHz / 20.0000 MHz / 20.1646 MHz / 20.4800 MHz / 20.9500 MHz / 21.0010 MHz / 22.0000 MHz / 22.1184 MHz / 24.0000 MHz / 24.5760 MHz / 25.0000 MHz / 26.0000 MHz / 27.0000 MHz / 27.1200 MHz / 27.13438 MHz / 27.13594 MHz / 27.1727 MHz / 28.2240 MHz / 28.4500 MHz / 28.5938 MHz / 28.636363 MHz / 29.4912 MHz / 30.0000 MHz / 31.2500 MHz / 31.3344 MHz / 32.0000 MHz / 32.7680 MHz / 35.3280 MHz / 36.0000 MHz / 37.5000 MHz / 38.4000 MHz / 39.0000 MHz / 40.0000 MHz / 40.6850 MHz / 44.5450 MHz / 48.0000 MHz / 50.0000 MHz / 80.0000 MHz / 82.7020 MHz
| ±10 ppm | ±15 ppm | ±20 ppm | ±30 ppm | ±50 ppm | |
|---|---|---|---|---|---|
| 0/70 °C | • | • | • | • | • |
| -10/60 °C | • | • | • | • | • |
| -20/70 °C | • | • | • | • | • |
| -40/85 °C | • | • | • | • | |
| -40/125 °C | • | ||||
| 0/50 °C | • | • | • | • | • |
DATASHEET: SMD QUARTZ CRYSTAL SMD0603-4
