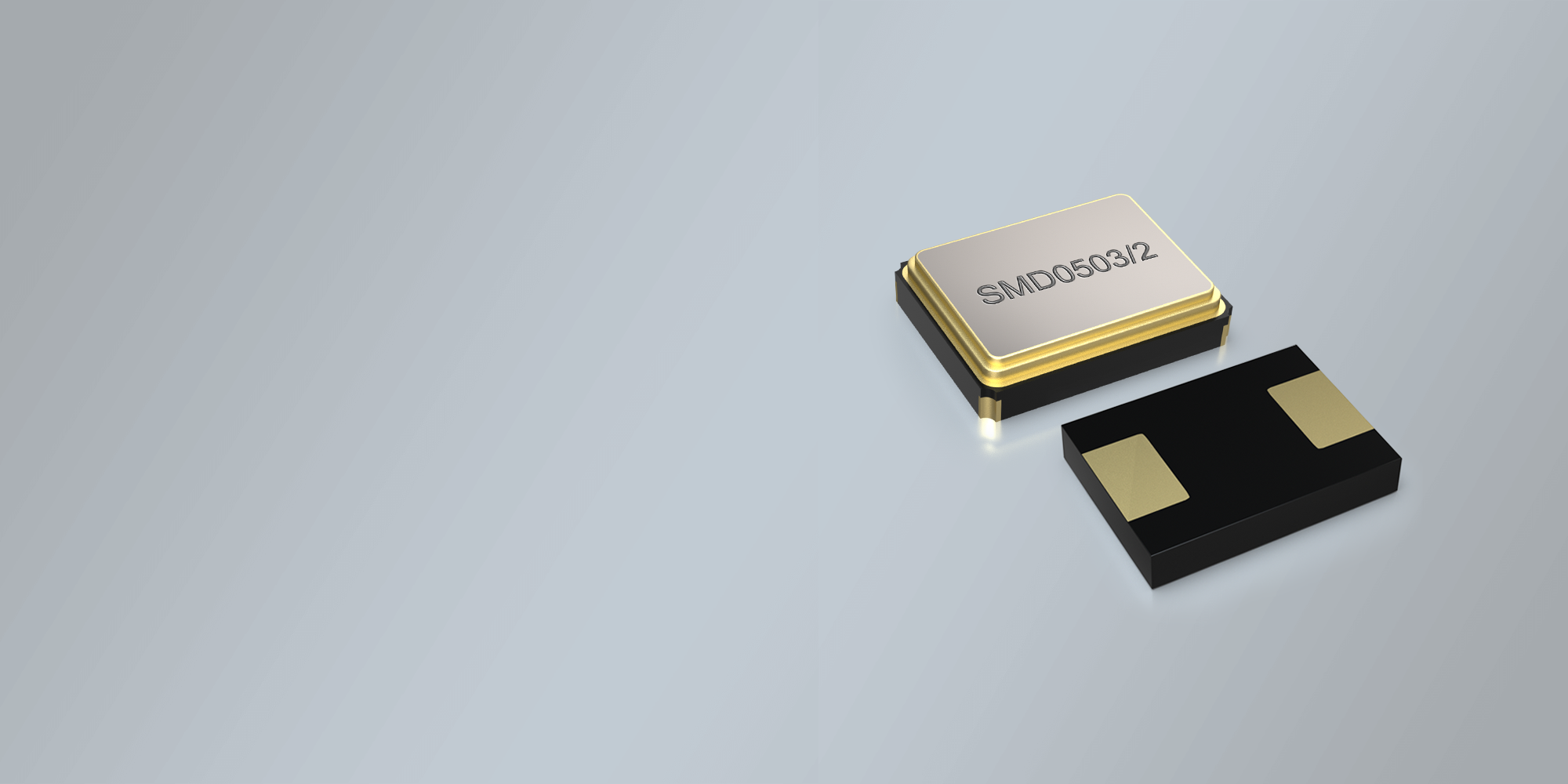

SMD QUARZ 5.0 x 3.2 mm 8.0 - 112.0 MHz
- SMD Schwingquarz 5,0 x 3,2 mm
- Hohe Zuverlässigkeit zum günstigen Preis
- Erweiterter Temperaturbereich bis -40/+125°C verfügbar
- Frequenztoleranz von ±10ppm@+25°C, enge Temperaturstabilitäten und minimale Alterungswerte lieferbar
- Qualifiziert für den Einsatz in Automotive-Anwendungen
- Widerstandreduziertes Quarzdesign für schnelles und sicheres Anschwingen
-
Product Name
SMD Quartz Crystal
-
Package
SMD Ceramic/2pad
-

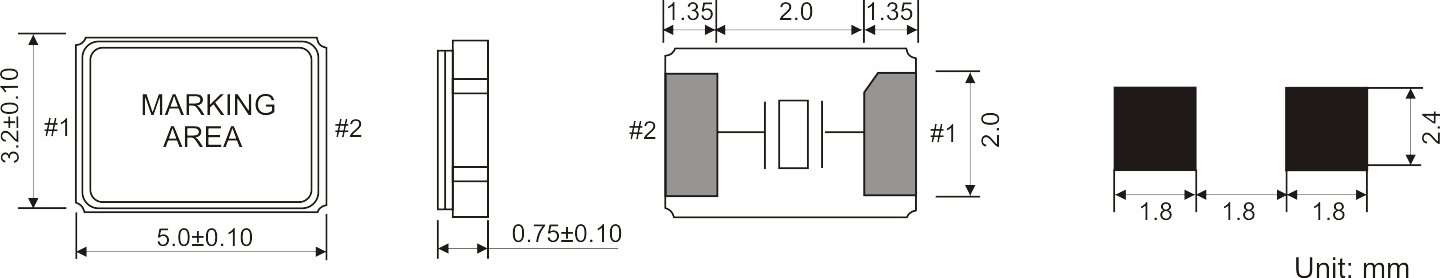

Dimensions in mm (W x D x H)
5.0 x 3.2 x 0.75 mm
-
Frequency Range
8.00 - 112.00 MHz
-
DELIVERY FORM
Tape and Reel (1.000 pcs per reel)
-
STORAGE TEMPERATURE
-55°+125°C
-
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
-
AGING
±2 ppm per year standard (±1 ppm available as option)
-
DRIVE LEVEL
200 µW max.
-
SHUNT CAPACITANCE C0
5 pF max.
-
WORKING TEMPERATURE RANGES
0/+50°C ~ -40/+125°C
-
LOAD CAPACITANCE (CL)
6 pF ~ 50 pF or Series
-
RESONANCE RESISTANCE
80 ~ 40 Ω max. AT Fundamental
60 Ω max. 3rd Overtone -
FREQUENCY TOLERANCES AT 25°C
±5 ppm ~ ±50 ppm
-
FREQUENCY RANGES (SEPARATED)
8.0 ~ 54.0 MHz AT-Fundamental
54.0 ~ 112.0 MHz 3rd Overtone -
NUMBER OF SOLDER PADS
2
| ±5 ppm | ±10 ppm | ±15 ppm | ±20 ppm | ±30 ppm | ±50 ppm | |
|---|---|---|---|---|---|---|
| 0/50 °C | • | • | • | • | • | • |
| -10/60 °C | • | • | • | • | • | |
| 0/70 °C | • | • | • | • | • | |
| -20/70 °C | • | • | • | • | • | |
| -40/85 °C | • | • | • | • | ||
| -40/125 °C | • |
DATASHEET: SMD QUARTZ CRYSTAL SMD0503-2
