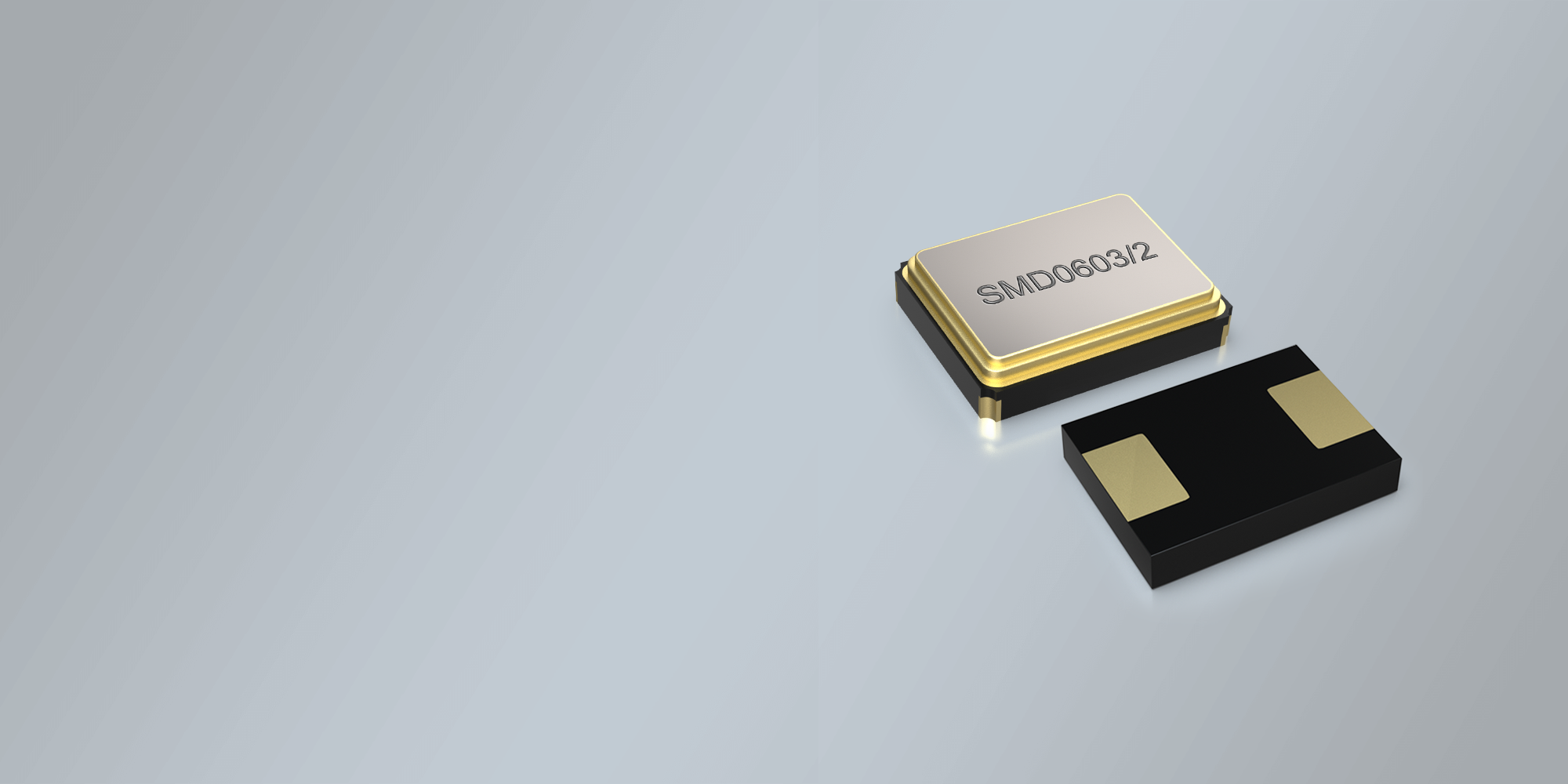

SMD QUARZ 6,0 x 3,5 mm 8.0 - 160.0 MHz

SMD QUARZ 6,0 x 3,5 mm 8.0 - 160.0 MHz

  • SMD Schwingquarz 6,0 x 3,5 mm im Keramikgehäuse
  • Top Performance und exzellente Langlebigkeit zum günstigen Preis
  • Erweiterter Temperaturbereich bis -40/+125°C verfügbar
  • Exzellenter Taktsignal Generator für CPU's
  • Product Name

    SMD Quartz Crystal

  • Gehäusetyp

    SMD Ceramic/2pad

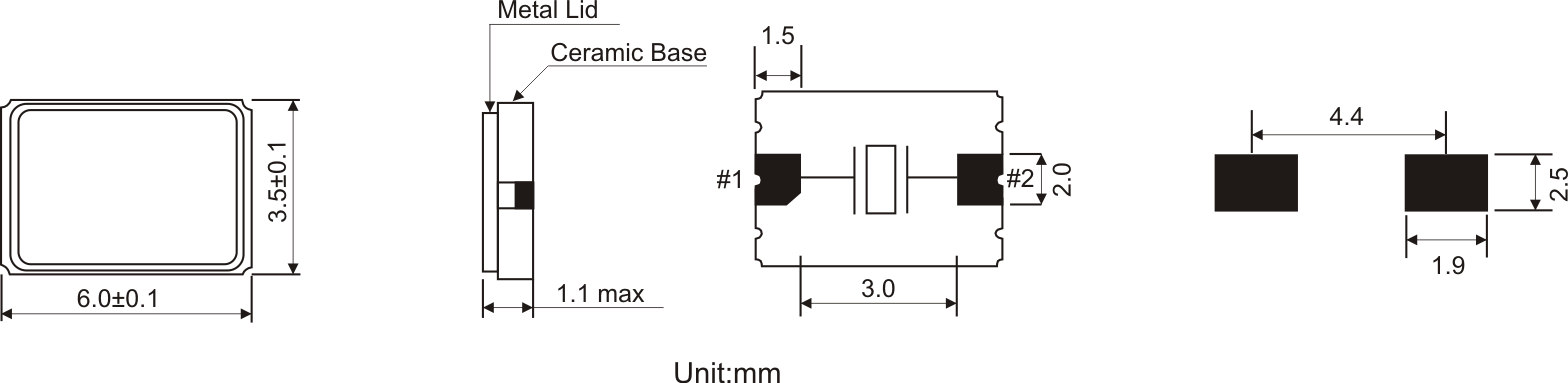

  • Abmessungen in mm (B x T x H)

    6.0 x 3.5 x 1.1 mm

  • Frequenzbereich

    8.00 - 160.00 MHz

  • NUMBER OF SOLDER PADS

    2 Please do not use this package for new design. Please use SMD0603/4 for new design.

  • FREQUENCY RANGES (SEPARATED)

    8.0 MHz ~ 40.0 MHz AT-Fundamental 40.1 MHz ~ 160.0 MHz 3rd Overtone At-cut

  • FREQUENCY TOLERANCES AT 25°C

    ±10 ppm ~ ±30 ppm (±30 ppm standard)

  • LOAD CAPACITANCE (CL)

    10 pF ~ 32 pF or Series Resonance

  • WORKING TEMPERATURE RANGES

    -20/+70°C ~ -40/+125°C

  • RESONANCE RESISTANCE

    8.0 ~ 12.0 MHz = 80 Ω max.
    12.1 ~ 16.0 MHz = 60 Ω max.
    16.1 ~ 40.0 MHz = 40 Ω max.
    40.1 ~ 160.0 MHz = 70 Ω max.

  • SHUNT CAPACITANCE C0

    7 pF max.

  • DRIVE LEVEL

    0.1 mW typ. / 0.5 mW max.

  • AGING

    ±3 ppm per year max.

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±15%

  • STORAGE TEMPERATURE

    -55°+125°C

  • DELIVERY FORM

    Tape and Reel (1.000 pcs per reel)

  ±10 ppm ±20 ppm ±30 ppm ±50 ppm ±100 ppm
-20/70 °C
-40/85 °C
-40/105 °C
-40/125 °C
*Operating temperature at 10 ppm is only up to -30°/+80°C
SMD QUARTZ CRYSTAL 6.0 x 3.5 mm 8.0 - 160.0MHz

DATASHEET: SMD QUARTZ CRYSTAL SMD0603-2

SMD QUARTZ CRYSTAL SMD0603-2
