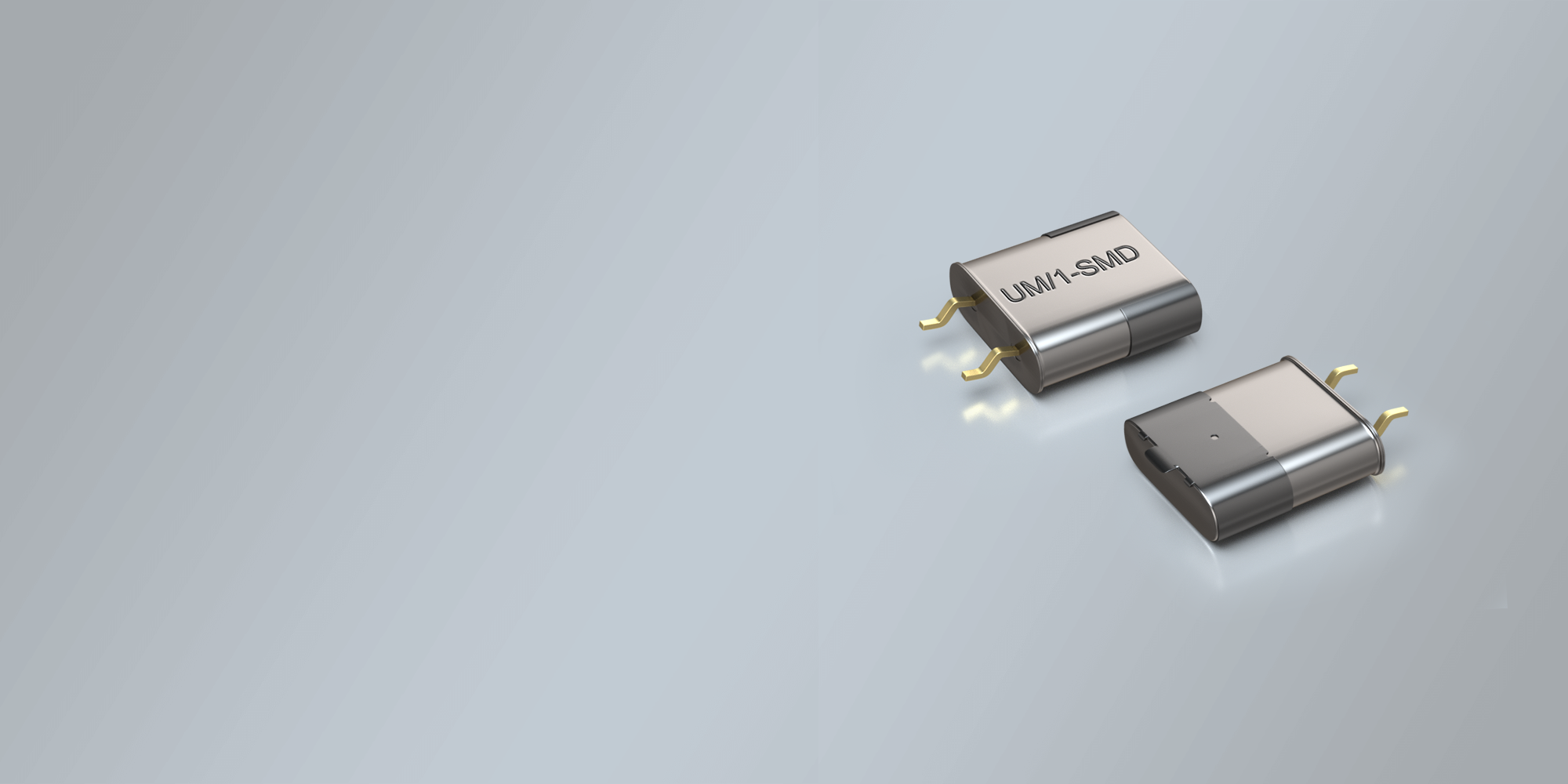

SMD QUARZ UM1/CLIP 8,0 x 3,6 mm 6.00 - 200.0 MHz
- Top Performance und exzellente Langlebigkeit zum günstigen Preis
- Erweiterter Temperaturbereich bis -40/+125°C verfügbar
- Frequenztoleranz von ±10ppm@+25°C, enge Temperaturstabilitäten und minimale Alterungswerte lieferbar
- Exzellenter Taktsignal Generator für CPU's
- Konzipiert für den Einsatz in Wearables, Kommunikation, Automotive usw. ,
- Allgemeine Daten
- Temperaturstabilität
- Abmessungen
- Konfigurator Produktanfrage
- Konfigurator Musteranfrage
-
Produkt Name
SMD Quartz Crystal
-
Package
SMD Metal
-
Dimensions in mm (W x D x H)
8.0 x 3.6 x 12.5 mm
-
Frequency Range
6.00 - 200.00 MHz
-
NUMBER OF LEADS
2 (standard)
3 (optional) -
FREQUENCY RANGES (SEPARATED)
6.0 ~ 45.0 MHz AT-Fundamental
30.0 ~ 100.0 MHz 3rd Overtone
80.0 ~ 155.0 MHz 5thOvertone
120.0 ~ 200.0 MHz 7th Overtone -
FREQUENCY TOLERANCES AT 25°C
±5 ppm ~ ±50 ppm
-
LOAD CAPACITANCE (CL)
6 pF ~ 50 pF or Series
-
WORKING TEMPERATURE RANGES
0/+50°C ~ -40/+125°C
-
SHUNT CAPACITANCE C0
7 pF max.
-
DRIVE LEVEL
100 µW typical (0.01 mW ~ 1 mW possible on request)
-
AGING
±3 ~ ±5 ppm per year standard
(±1 or ±2 ppm available as option) -
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
-
STORAGE TEMPERATURE
-55°+125°C
-
DELIVERY FORM
Tape and Reel (1.000 pcs per reel)
±5 ppm | ±10 ppm | ±20 ppm | ±30 ppm | ±50 ppm | |
---|---|---|---|---|---|
0/70 °C | • | • | • | • | • |
-10/60 °C | • | • | • | • | • |
-40/85 °C | • | • | • | • | |
-40/125 °C | • | ||||
0/50 °C | • | • | • | • | • |
-20/70 °C | • | • | • | • | • |
