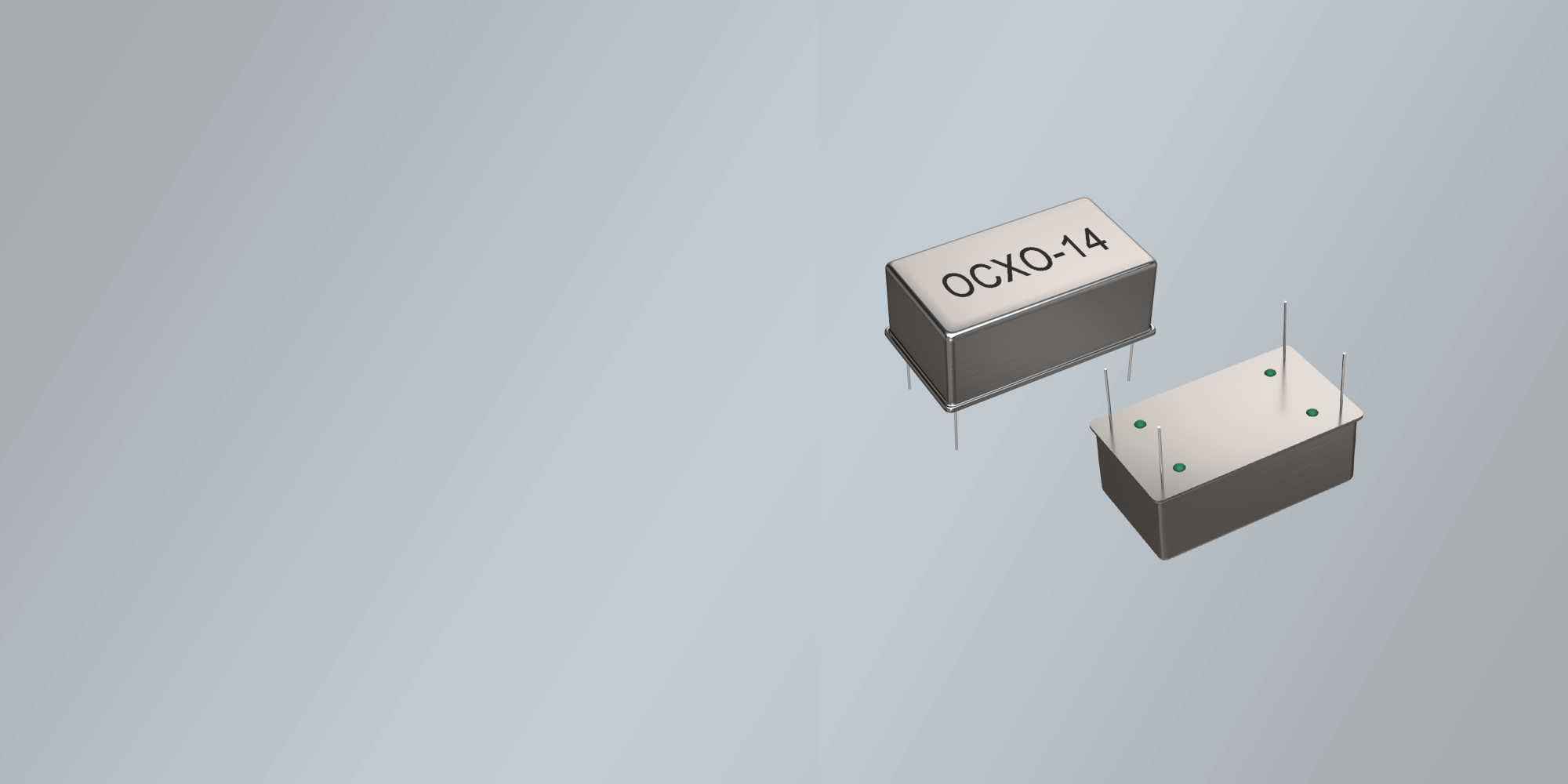

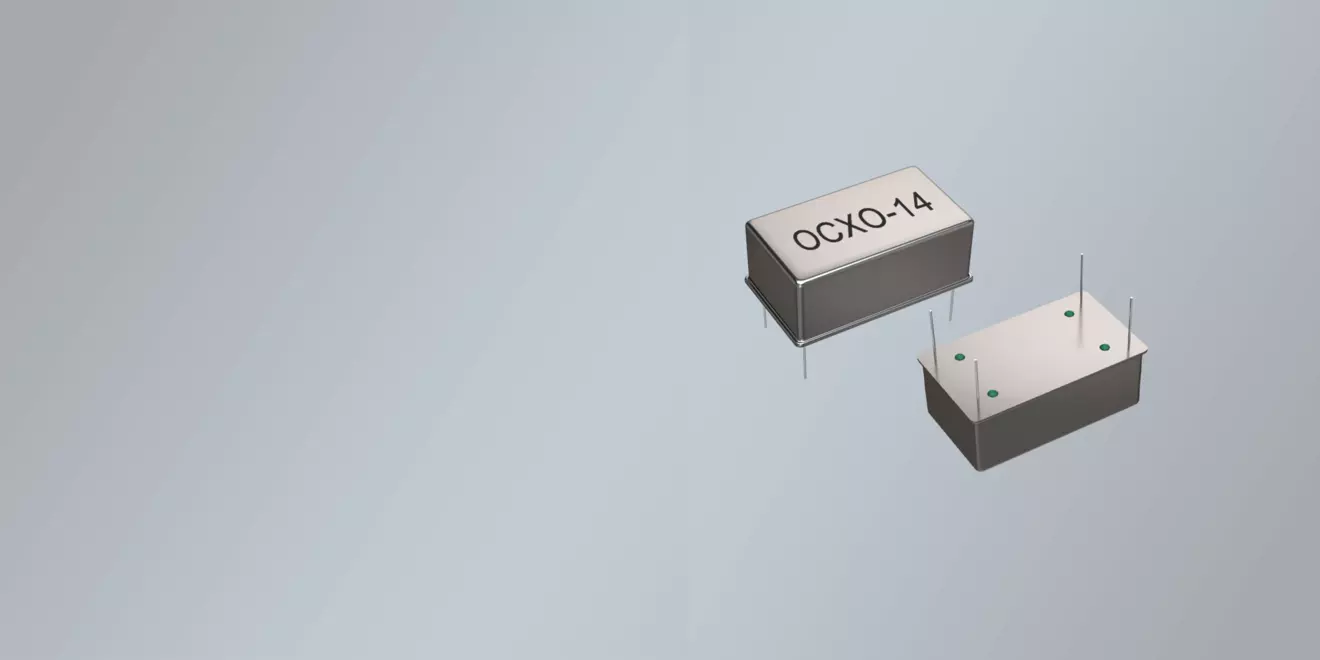

THT OCXO OSZILLATOR 20.8 x 13.2 mm 2.0-100.0 MHz
- Top Performance und exzellente Zuverlässigkeit zum günstigen Preis
- SC-Cut und AT-Cut basiertes OCXO Design
- Extrem großer Versorgungsspannungsbereich von 3.3 ~ 12 VDC
- Kurze Warm-up Zeit und ausgezeichnetes Einlaufverhalten
- Höchste Stabilität, hervorragende Phasenrauschwerte, niedriger Stromverbrauch
- Erweiterter Temperaturbereich bis -40/+75°C verfügbar
Produkt Name
OCXO
Package
THT Metal

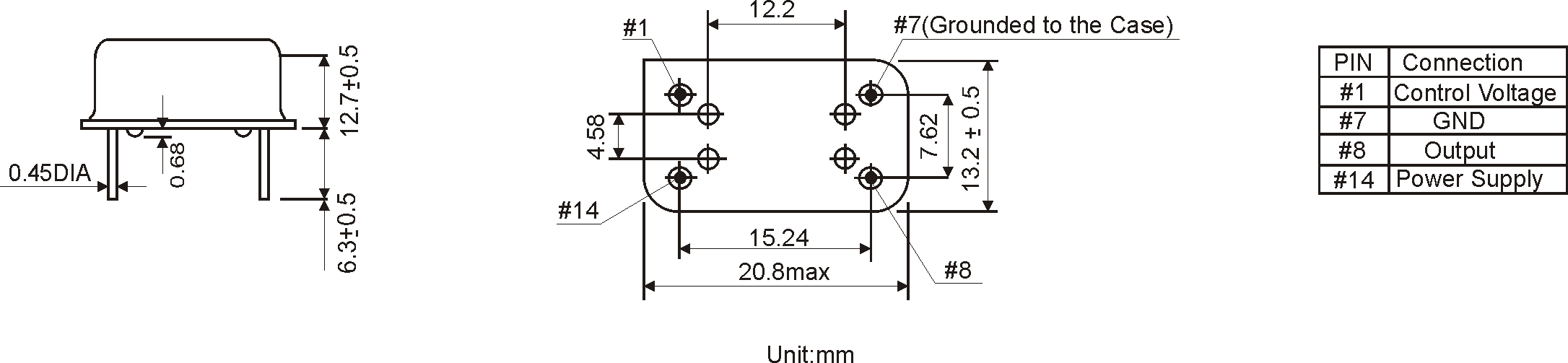

Dimensions in mm (W x D x H)
20.8 x 13.2 x 12.7 mm
Frequency Range
2.00 - 100.00 MHz
FREQUENCY ACCURACY
±0.5 ppm (control voltage centered)
FREQUENCY STABILITY VS. AGING
±0.5 ppm max. after first year / ±3 ppm max. after 10 years
FREQUENCY STABILITY VS. LOAD
±0.02 ppm / load change of ±10 %
FREQUENCY STABILITY VS. SUPPLY VOLTAGE
±0.02 ppm / supply voltage change of ±5 %
FREQUENCY STABILITY VS. TEMPERATURE
Click Tab Frequency Stability
SHORT TERM STABILITY
1.0x10E-10/s (10 MHz)
OPERATING TEMPERATURE RANGE
0/+50°C ~ -40/+75°C
STORAGE TEMPERATURE RANGE
-40/+100°C
SUPPLY VOLTAGE
+3.3VDC / +5.0VDC / +12VDC
CURRENT CONSUMPTION
2.0W max. during warm-up / 1.0W max. when static
WARM-UP TIME
±0.5 ppm <3 minutes
FREQUENCY CONTROL RANGE
±0.5 ppm
CONTROL VOLTAGE
0 ~ 3.3 VDC, 0 ~ 5 VDC
SLOPE
POSITIVE
LINEARITY
±10%
PHASE NOISE (10MHz) 10 Hz
-90 dBc/Hz
PHASE NOISE (10MHz) 100 Hz
-120 dBc/Hz
PHASE NOISE (10MHz) 1 kHz
-145 dBc/Hz
PHASE NOISE (10MHz) 10 kHz
-150 dBc/Hz
OUTPUT SIGNAL AND LOAD CHARACTERISTICS
Click Tab Output Waveform
DATASHEET: THT LOW POWER OSCILLATOR OCXO-14
