NAME:LPOP

IMAGE:1

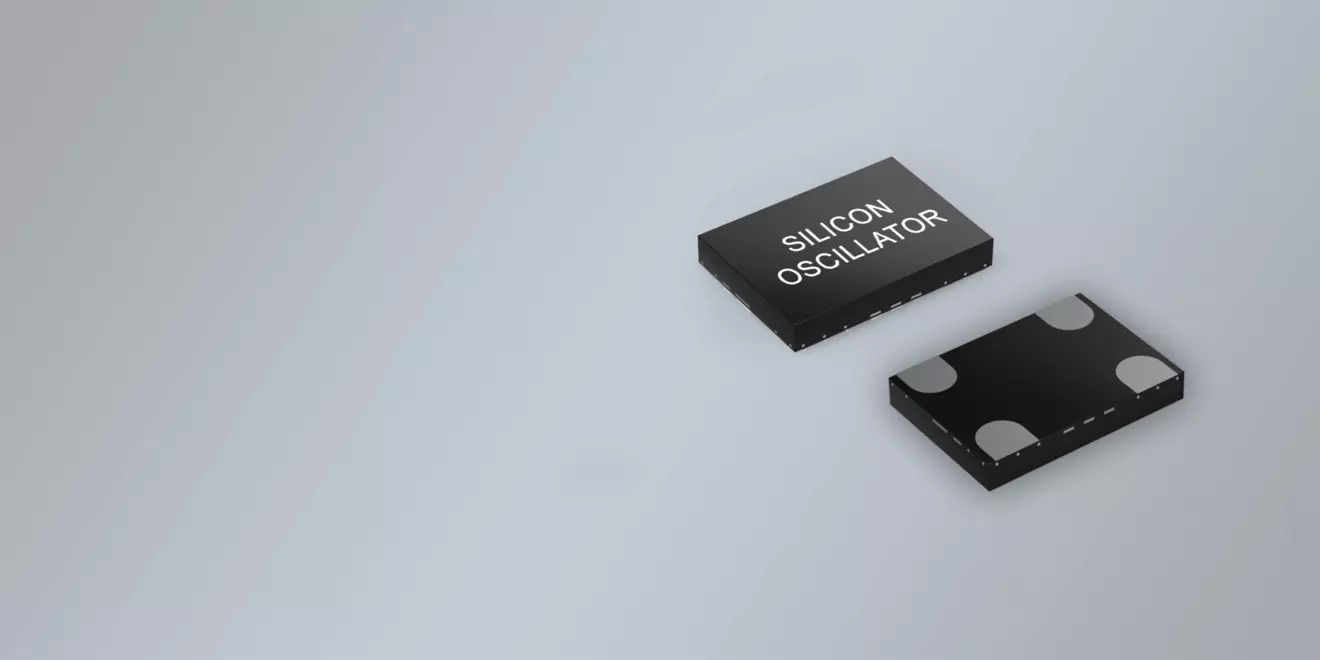

SMD LOW POWER 1 - 137 MHz PROGRAMMABLE SILICON OSCILLATORS

SMD HIGH-TEMPERATURE 1-137 MHz SILIZIUM OSZILLATOREN

  • Hundertprozentiger direkter Pin-to-Pin-Ersatz von Quarz- und MEMS-basierten Oszillatoren
  • High Temperature Low Power Oszillator zum günstigen Preis
  • Höchste Langzeitzuverlässigkeit
  • Exzellente Frequenzstabilität von ±20 ppm
  • Betriebstemperatur von -40°C bis 125°C
  • Express-Musterlieferung am gleichen Tag
  • Product Name

    High Temperature 1 - 137 MHz

  • Package

    SMD QFN/4pad

  • Dimensions in mm (W x D x H)

    2.0 x 1.6 ~ 7.0 x 5.0

  • Frequency Range

    1.00 - 110.00 MHz

  • SUPPLY VOLTAGE

    1.8 V to 3.63 V

  • FREQUENCY STABILITY

    ±20 ppm to ±50 ppm

  • OPERATING TEMPERATURE RANGE

    -40/+105 ~ -40/+125°C

  • STORAGE TEMPERATURE RANGE

    -55/+125°C

  • DELIVERY FORM

    Bulks or Tubes for sampling
    Tape & Reel for serial quantities

  • ENVIRONMENTAL REQUIREMENTS

    Pb-free, RoHS and REACH compliant

  • Unique combination of product features

    • Better timing margin ideal for space constrained, outdoor and high temp operating environment

  • 0.1 ppb/g low vibration sensitivity

    • Improved system performance under vibration
    • Simpler carrier drop-test compliance (STB, etc.)

  • 70 g shock and 50 kg vibration

    • Best system relability in harsh environment

  • Programmable drive strength

    • Slower rise/fall time that minimizes EMI from the oscillator
    Lower cost by driving multiple loads and eliminate additional timing components

  • 5 industry standard package

    • 100% drop in repalcement of quartz XO

  • Ultra fast lead time

    • Reduce inventory overhead
    • Mitigate shortage risks

DATASHEET: SMD High Temperature 1-110MHz Silicon Oscillator (HTLPO)

High Temperature 1-110MHz Silicon Oscillator

DATASHEET: SMD High Temperature 115-137MHz Silicon Oscillator (HTLPO)

High Temperature 115-137MHz Silicon Oscillator
