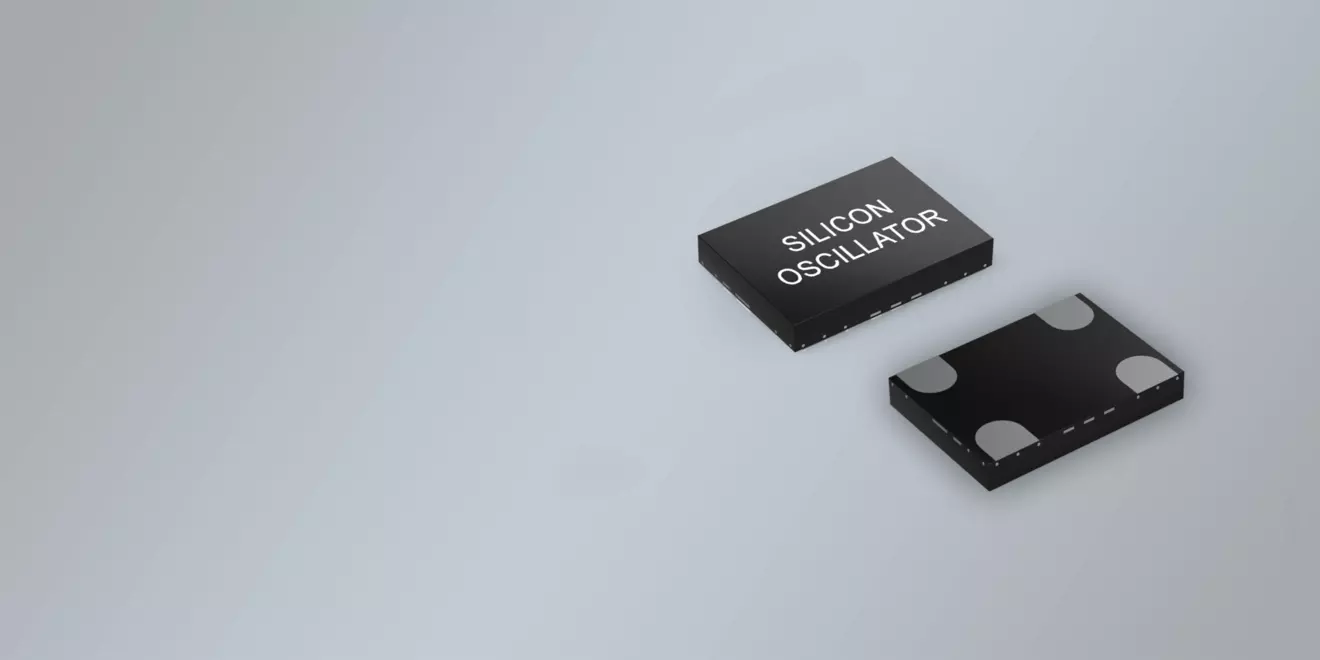

SMD LOW POWER 1 - 137 MHz SILIZIUM OSZILLATOREN
- Low Power Silizium Oszillator zum günstigen Preis
- Höchste Langzeitzuverlässigkeit
- Exzellente Frequenzstabilität von ±20 ppm bei –40/+85°C
- Frequenzbereich von 1 MHz bis 137 MHz mit einer Genauigkeit von sechs Dezimalstellen
- Minimale Langzeitalterung
- Express-Musterlieferung am gleichen Tag
Produkt Name
LPO
Package
SMD QFN/4pad
Dimensions in mm (W x D x H)
2.0 x 1.6 ~ 7.0 x 5.0
Frequency Range
1.00 - 110.00 MHz
SUPPLY VOLTAGE
1.8 V to 3.63 V
FREQUENCY STABILITY
±20 ppm to ±50 ppm
OPERATING TEMPERATURE RANGE
0/+70°C ~ -40/+85°C
STORAGE TEMPERATURE RANGE
-55/+125°C
FREQUENCY RANGE 2
115.00 - 137.00 MHz
DELIVERY FORM
Bulks or Tubes for sampling
Tape & Reel for serial quantitiesENVIRONMENTAL REQUIREMENTS
Pb-free, RoHS and REACH compliant
Configurable feature sets
• Customize specification for optimal system performance
• Use same base device for many design, reducing qualification needs
• Save more board space without compromising performance
Low power consumption
• Extends battery life in portable applications
• Reduces power consumption for greener systems
Configurable drive strength
• Slower rise/fall time that minimizes EMI from the oscillator
• Saves cost by driving multiple loads and eliminate additional timing components
Ultra fast lead time
• Reduce inventory overhead
• Mitigate shortage risks
DATASHEET: SMD LPO Low Power 1-110MHz Silicon Oscillator (LPO)
DATASHEET: SMD Low Power 115-137MHz Silicon Oscillator (LPO)
