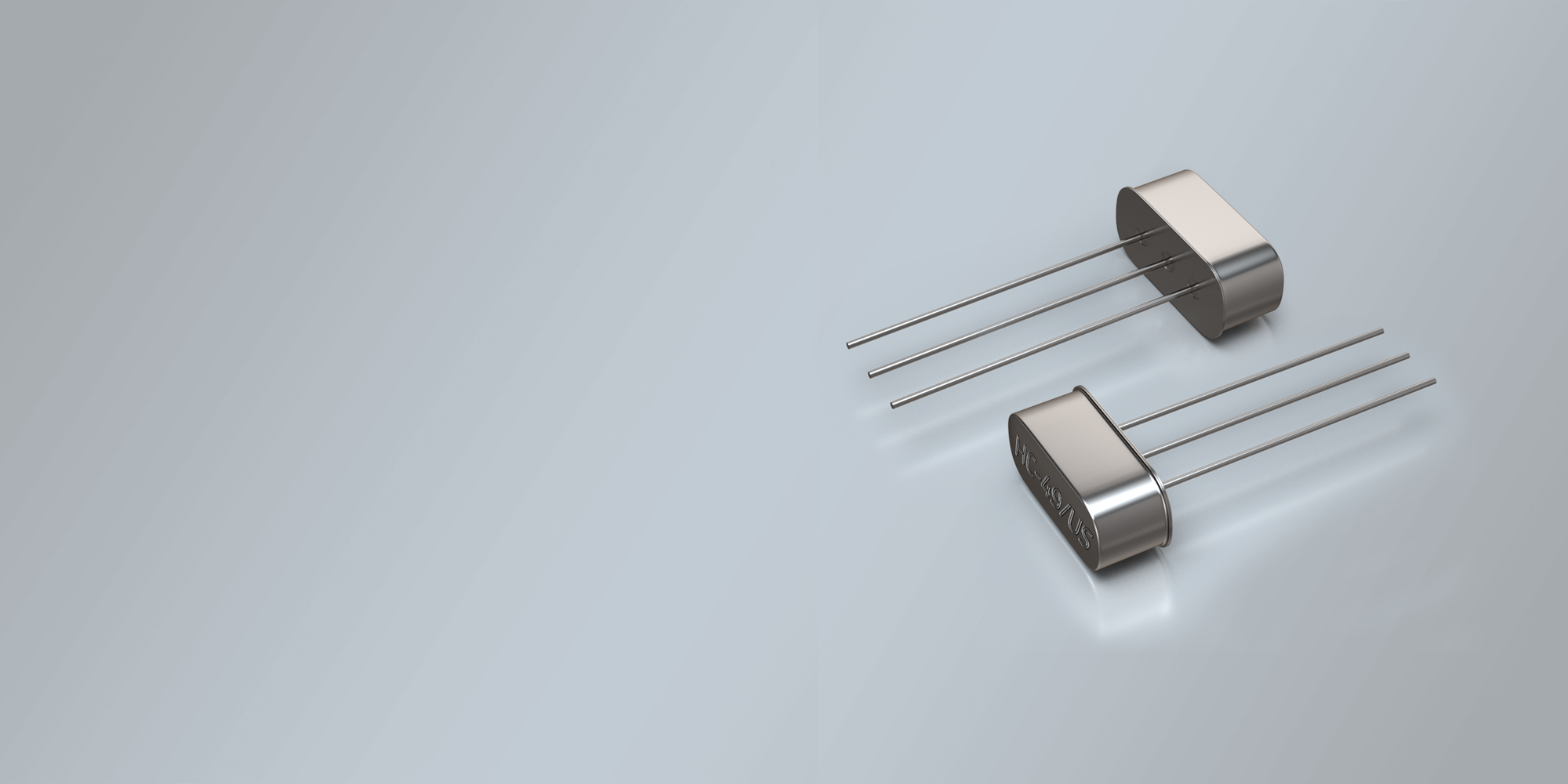

THT QUARZ HC-49/US 3 LEADS 3.5 - 75.0 MHz

THT QUARZ HC-49/US 3 LEADS 11,05 x 4,65 mm 3.5 - 75.0 MHz

  • Top Performance und exzellente Langlebigkeit zum günstigen Preis
  • Erweiterter Temperaturbereich bis -55/+125°C verfügbar
  • Excellenter Taktsignal Generator für CPU's
  • Qualifiziert für den Einsatz in Automotive Anwendungen
  • Product Name

    Quartz Crystal

  • Gehäusetyp

    THT Metal

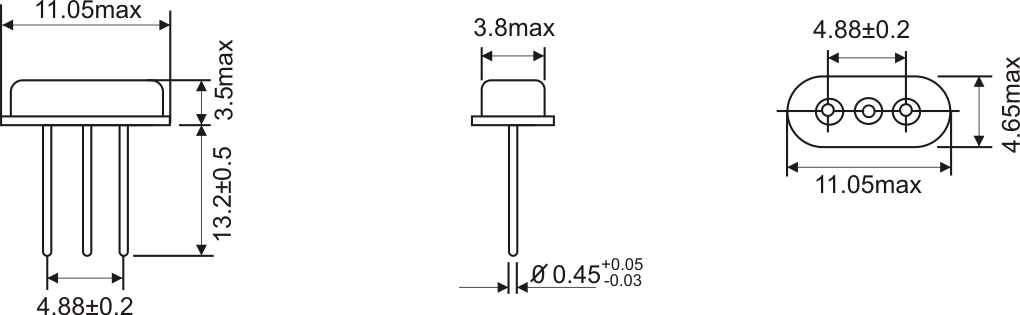

  • Abmessungen in mm (B x T x H)

    11.05 x 4.65 x 3.5 mm

  • Frequenzbereich

    3.50 - 75.00 MHz

  • NUMBER OF LEADS

    HC-49/3US = 3 (middle pin for grounding)

  • OPTIONS FOR HOUSING

    Insulator = for 2 leads and 3 leads housing Cutted leads = only for 2 leads housing

  • FREQUENCY RANGE

    3.48755 ~ 40.0 MHz AT-Fundamental
    24.0 ~ 44.0 MHz BT-Fundamental
    24.576 ~ 75.0 MHz 3rd Overtone

  • FREQUENCY TOLERANCES AT 25°C

    ±5 ppm ~ ±50 ppm

  • LOAD CAPACITANCE (CL)

    6 pF ~ 50 pF

  • WORKING TEMPERATURE RANGES

    0/+50°C ~ -55/+125°C

  • SHUNT CAPACITANCE C0

    7 pF max.

  • DRIVE LEVEL

    100 µW typical (0.01 mW ~ 1 mW possible)

  • AGING

    ±3 ~ ±5 ppm per year standard (±2 ppm available as option)

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • STORAGE TEMPERATURE

    -55°+125°C

  • DELIVERY FORM

    Standard = Bulks for 2 leads and 3 leads housing
    Option = Paper Tape on Reel only for 2 leads housing

  ±3 ppm ±5 ppm ±10 ppm ±15 ppm ±20 ppm ±30 ppm ±50 ppm
0/50 °C
-10/60 °C
0/70 °C
-20/70 °C
-40/85 °C
-40/125 °C
-55/125 °C
THT QUARTZ CRYSTAL HC-49/US 3 LEADS 11.05x4.65mm

DATASHEET: THT QUARTZ CRYSTAL HC-49-3US-THT

THT QUARTZ CRYSTAL HC-49-3US-THT
