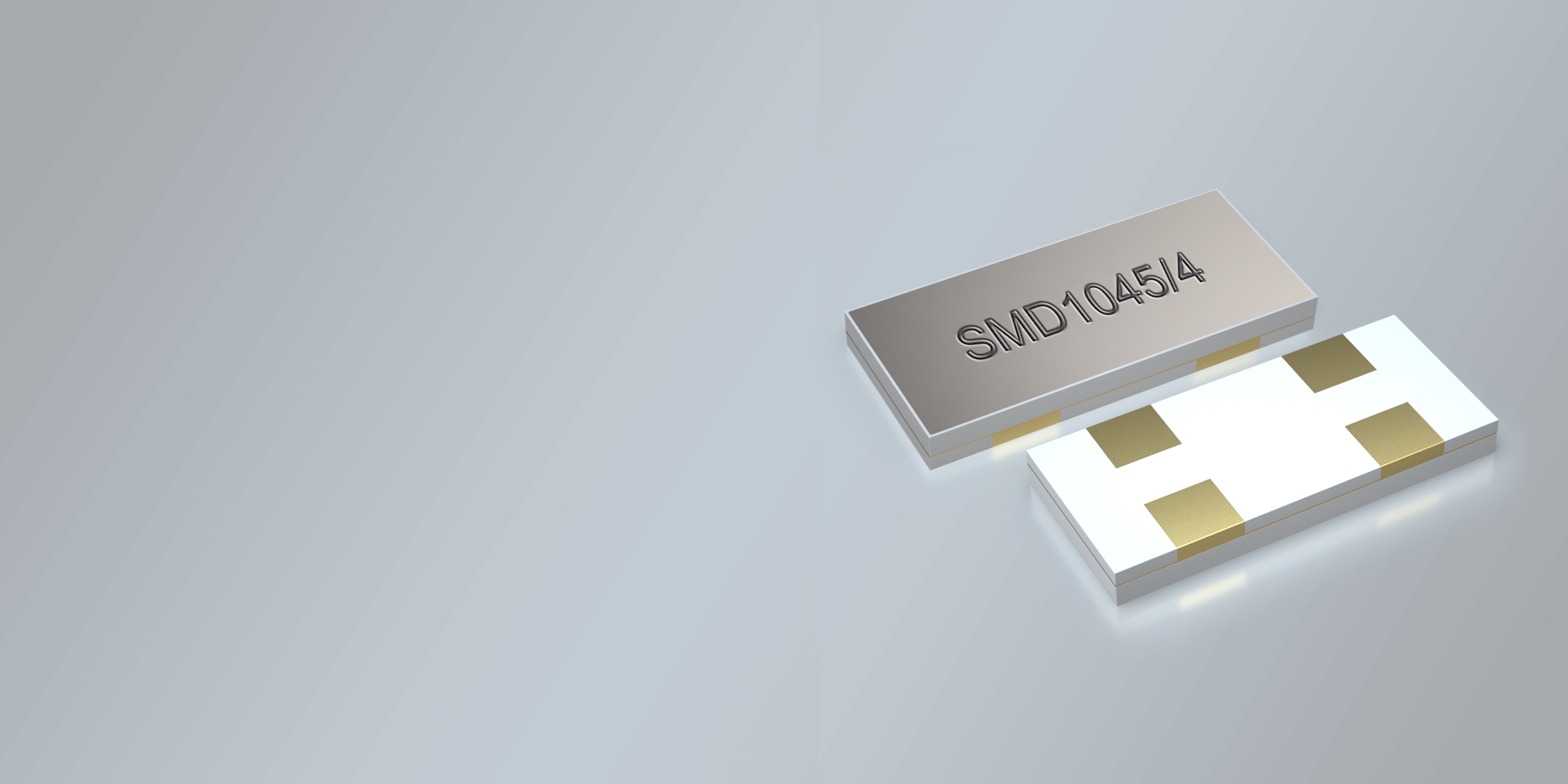

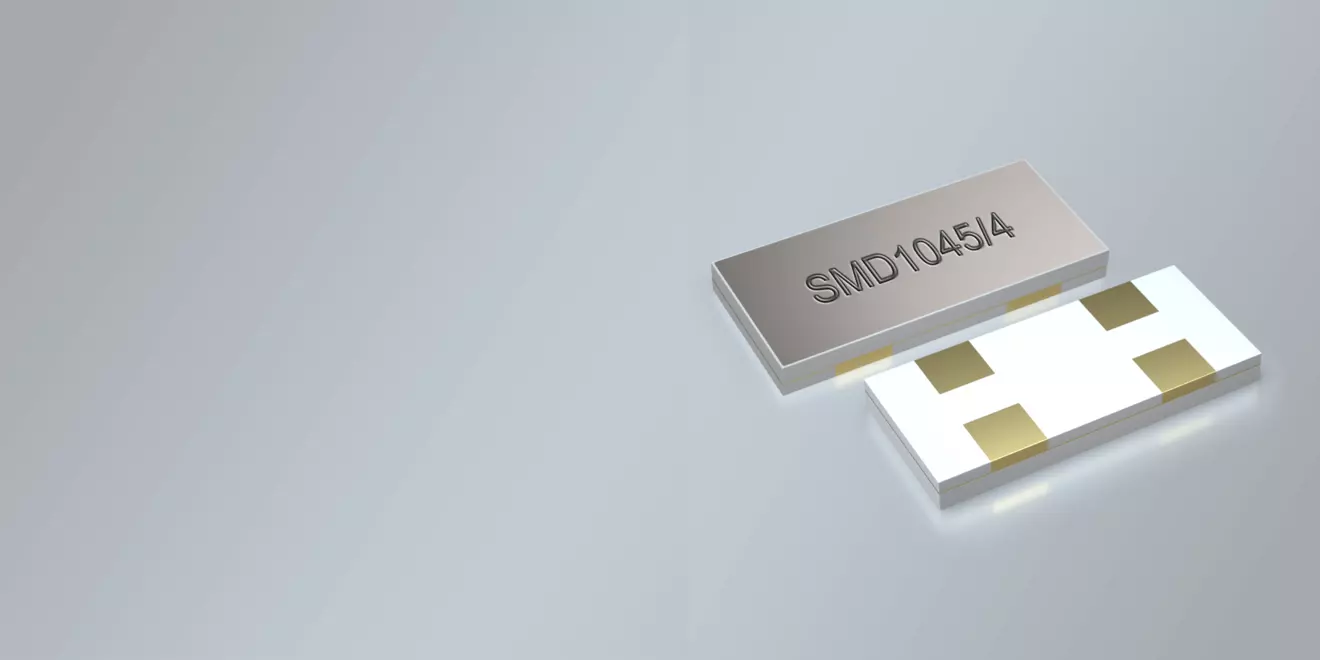

SMD QUARZ 10,0 x 4,5 mm 3.2768 - 10.0 MHz
- SMD Schwingquarz 10,0 x 4,5 mm
- Niedrige Frequenzen verfügbar
- Frequenztoleranz von ±10ppm@+25°C, enge Temperaturstabilitäten und minimale Alterungswerte lieferbar
- Erweiterter Temperaturbereich bis -40/+85°C verfügbar
- Exzellenter Taktsignal Generator für CPU's
- Allgemeine Daten
- Temperaturstabilität

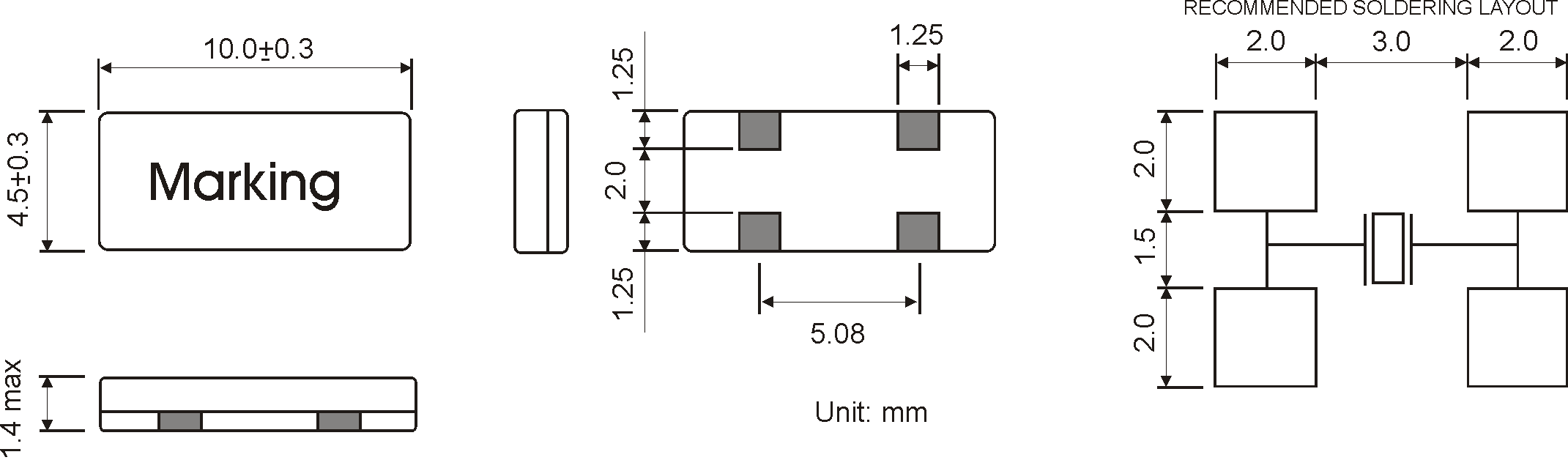

- Abmessungen
- Konfigurator Produktanfrage
- Konfigurator Musteranfrage
Produkt Name
SMD Quartz Crystal
Package
SMD Ceramic/4pad
Dimensions in mm (W x D x H)
10.0 x 4.5 x 1.4 mm
Frequency Range
3.2768 MHz - 10 MHz
NUMBER OF SOLDER PADS
4
FREQUENCY TOLERANCES AT 25°C
±20 ppm ~ ±50 ppm
LOAD CAPACITANCE (CL)
10 pF ~ 30 pF or Series, 18 pF standard
WORKING TEMPERATURE RANGES
0/+50°C ~ -40/+85°C
RESONANCE RESISTANCE
120 Ω max.
SHUNT CAPACITANCE C0
7 pF max.
DRIVE LEVEL
0.1 mW standard (optional 0.5 mW available)
AGING
±5 ppm per year
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE
-55°+125°C
DELIVERY FORM
Tape and Reel (1.000 pcs per reel)
| ±15 ppm | ±20 ppm | ±30 ppm | ±50 ppm | |
|---|---|---|---|---|
| 0/70 °C | • | • | • | • |
| -10/60 °C | • | • | • | • |
| -40/85 °C | • | • | • | |
| 0/50 °C | • | • | • | • |
| -20/70 °C | • | • | • | • |
DATASHEET: SMD QUARTZ CRYSTAL SMD1045-4
