SMD QUARZ 2.0 x 1.6 mm 16.0 - 60.0 MHz

SMD QUARZ 2,0 x 1,6 mm 16.0 - 285.0 MHz

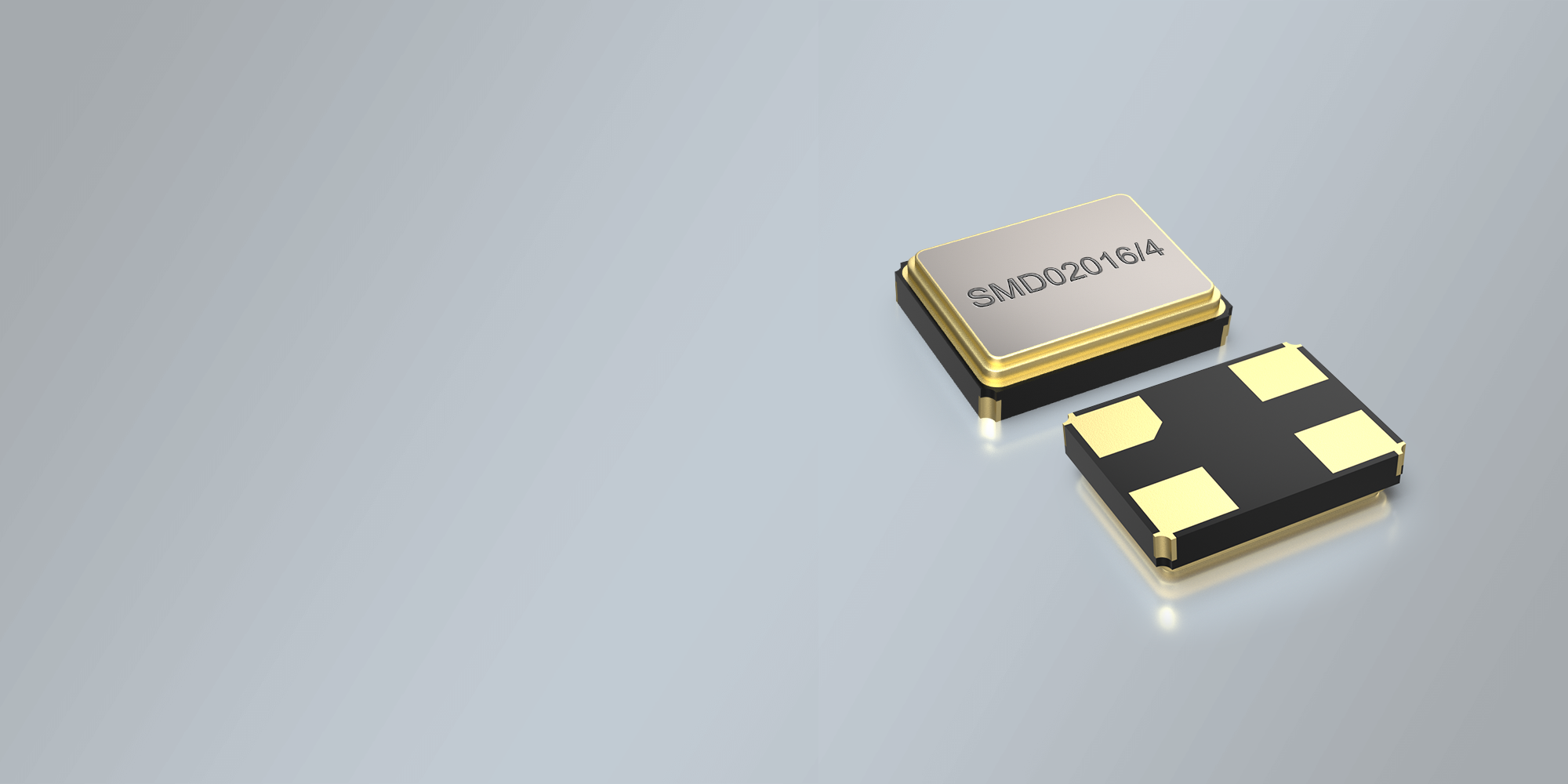

  • SMD Schwingquarz 2,0 x 1,6 mm im Keramikgehäuse
  • Top Performance und exzellent Langlebigkeit zum günstigen Preis
  • Widerstandreduziertes Quarzdesign (LRT-Technologie) für schnelles und sicheres Anschwingen
  • Verwendung u.a. in Wearables, Automotive, Wireless (WLAN, WIFI, Zigbee, ISM, KNX, etc.), IoT, M2M, GPS, Embedded, Industrial, Telecom, Medical, bzw. überall, wo ein high performance low cost Quarz benötigt wird.
  • Frequenztoleranz von ±10ppm@+25°C, enge Temperaturstabilitäten und minimale Alterungswerte lieferbar

  • Produkt Name

    SMD Quartz Crystal

  • Package

    SMD Ceramic/4pad

  • Dimensions in mm (W x D x H)

    2.0 x 1.6 x 0.45 mm

  • Frequency Range

    16.00 - 285.00 MHz

  • DELIVERY FORM

    Tape and Reel (3.000 pcs per reel)

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • AGING

    ±2 ppm per year standard (±10 ppm max. after 10 years available on request)

  • DRIVE LEVEL

    100 μW typ. / 200 μW max.

  • SHUNT CAPACITANCE C0

    1.5 pF max.

  • WORKING TEMPERATURE RANGES

    0/+50°C ~ -40/+125°C

  • LOAD CAPACITANCE (CL)

    Series, 6 pF ~ 50 pF

  • FREQUENCY TOLERANCES AT 25°C

    ±10 ppm ~ ±50 ppm

  • STANDARD FREQUENCIES

    16.0 MHz / 20.0 MHz / 24.0 MHz /
    24.576 MHz / 25.0 MHz / 26.0 MHz /
    27.0 MHz / 27.12 MHz / 30.0 MHz /
    32.0 MHz / 37.4 MHz / 38.4 MHz /
    39.0 MHz / 40.0 MHz / 48.0 MHz /
    50.0 MHz / 52.0 MHz / 76.8 MHz /
    80.0 MHz / 96.0 MHz

  • STORAGE TEMPERATURE

    -55°+125°C

  • DELIVERY FORM

    Tape and Reel (3.000 pcs per reel)

  • NUMBER OF SOLDER PADS

    4

  • STORAGE TEMPERATURE

    -55°+125°C

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • AGING

    ±2 ppm per year standard (±10 ppm max. after 10 years available on request)

  • DRIVE LEVEL

    100 μW typ. / 200 μW max.

  • WORKING TEMPERATURE RANGES

    0/+50°C ~ -40/+125°C

  • LOAD CAPACITANCE (CL)

    Series, 6 pF ~ 50 pF

  • FREQUENCY TOLERANCES AT 25°C

    ±10 ppm ~ ±50 ppm

  • STANDARD FREQUENCIES

    16.0 MHz / 20.0 MHz / 24.0 MHz /
    24.576 MHz / 25.0 MHz / 26.0 MHz /
    27.0 MHz / 27.12 MHz / 30.0 MHz /
    32.0 MHz / 37.4 MHz / 38.4 MHz /
    39.0 MHz / 40.0 MHz / 48.0 MHz /
    50.0 MHz / 52.0 MHz / 76.8 MHz /
    80.0 MHz / 96.0 MHz

  • NUMBER OF SOLDER PADS

    4

  • DELIVERY FORM

    Tape and Reel (3.000 pcs per reel)

  • STORAGE TEMPERATURE

    -55°+125°C

  • NUMBER OF SOLDER PADS

    4

  • STANDARD FREQUENCIES

    16.0 MHz / 20.0 MHz / 24.0 MHz /
    24.576 MHz / 25.0 MHz / 26.0 MHz /
    27.0 MHz / 27.12 MHz / 30.0 MHz /
    32.0 MHz / 37.4 MHz / 38.4 MHz /
    39.0 MHz / 40.0 MHz / 48.0 MHz /
    50.0 MHz / 52.0 MHz / 76.8 MHz /
    80.0 MHz / 96.0 MHz

  • FREQUENCY TOLERANCES AT 25°C

    ±10 ppm ~ ±50 ppm

  • LOAD CAPACITANCE (CL)

    Series, 6 pF ~ 50 pF

  • WORKING TEMPERATURE RANGES

    0/+50°C ~ -40/+125°C

  • SHUNT CAPACITANCE C0

    1.5 pF max.

  • DRIVE LEVEL

    100 μW typ. / 200 μW max.

  • AGING

    ±2 ppm per year standard (±10 ppm max. after 10 years available on request)

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • SHUNT CAPACITANCE C0

    1.5 pF max.

  • NUMBER OF SOLDER PADS

    4

  • STANDARD FREQUENCIES

    16.0 MHz / 20.0 MHz / 24.0 MHz /
    24.576 MHz / 25.0 MHz / 26.0 MHz /
    27.0 MHz / 27.12 MHz / 30.0 MHz /
    32.0 MHz / 37.4 MHz / 38.4 MHz /
    39.0 MHz / 40.0 MHz / 48.0 MHz /
    50.0 MHz / 52.0 MHz / 76.8 MHz /
    80.0 MHz / 96.0 MHz

  • FREQUENCY TOLERANCES AT 25°C

    ±10 ppm ~ ±50 ppm

  • LOAD CAPACITANCE (CL)

    Series, 6 pF ~ 50 pF

  • WORKING TEMPERATURE RANGES

    0/+50°C ~ -40/+125°C

  • SHUNT CAPACITANCE C0

    1.5 pF max.

  • DRIVE LEVEL

    100 μW typ. / 200 μW max.

  • AGING

    ±2 ppm per year standard (±10 ppm max. after 10 years available on request)

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • STORAGE TEMPERATURE

    -55°+125°C

  • DELIVERY FORM

    Tape and Reel (3.000 pcs per reel)

      ±10 ppm ±15 ppm ±20 ppm ±30 ppm ±50 ppm
    -10/60 °C • • • • •
    -40/85 °C • • • •
    -40/105 °C • •
    -40/125 °C •
    0/70 °C • • • • •
    0/50 °C • • • • •
    -20/70 °C • • • • •
    SMD QUARZ 2.0 x 1.6 mm 20.0 - 60.0MHz
    • Consumer Electronics
    • Networking
    • Industrial
    • RFID/NFC
    • Wearables
    • IoT
    • HD & Storage
    • Mobile Communication
    • PC/PC Peripheral/IT
    • WiMAX, WLAN, Wi-Fi
    • Embedded
    • Automotive
    • Medical applications
    • SMART-METER
    • SENSORS
    • IoTT (Internet of Tiny Things)

    DATASHEET: SMD QUARTZ CRYSTAL SMD2016-4 (GENERAL FEATURES)

    SMD QUARTZ CRYSTAL SMD2016-4 (GENERAL FEATURES)
