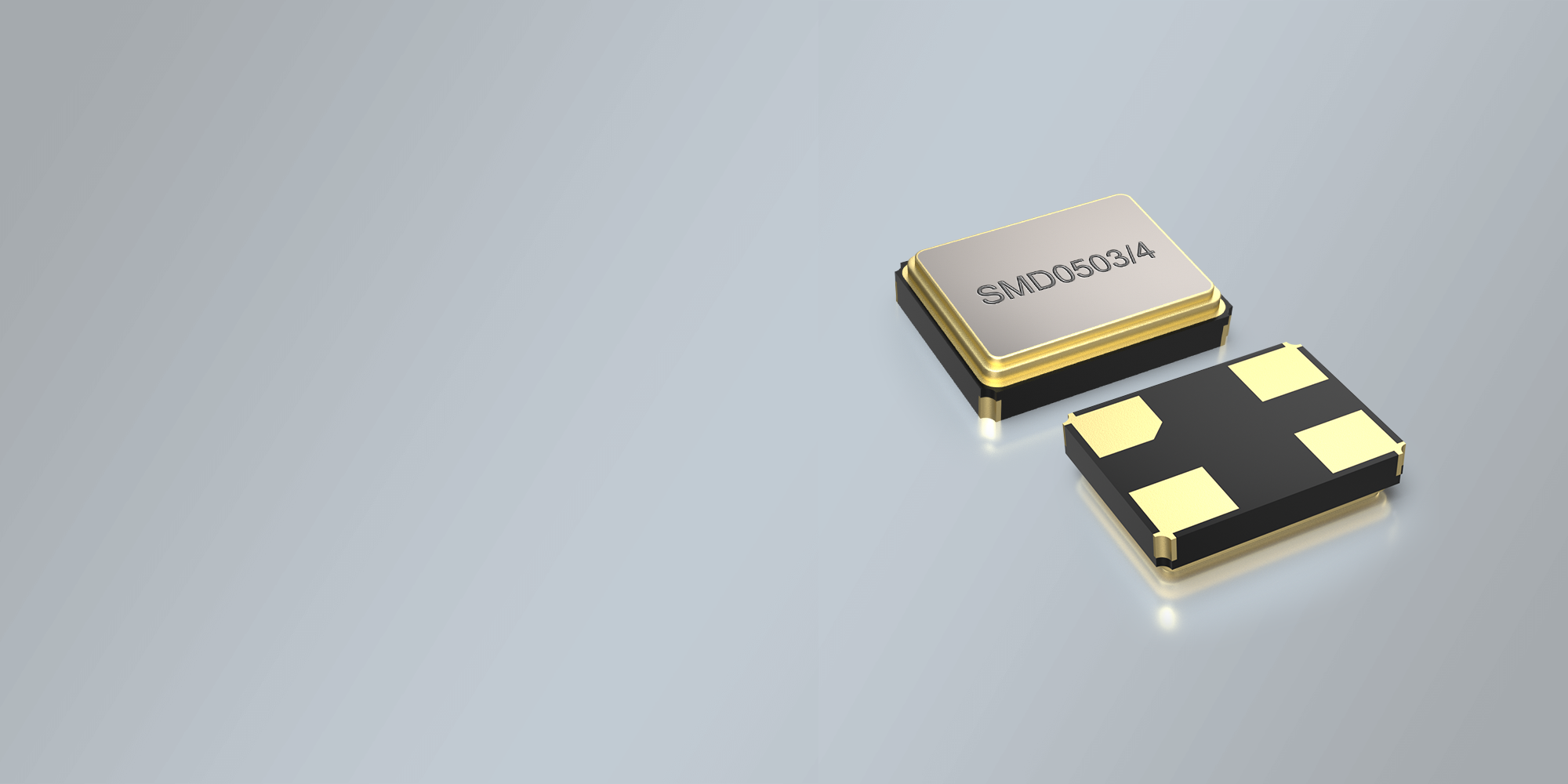

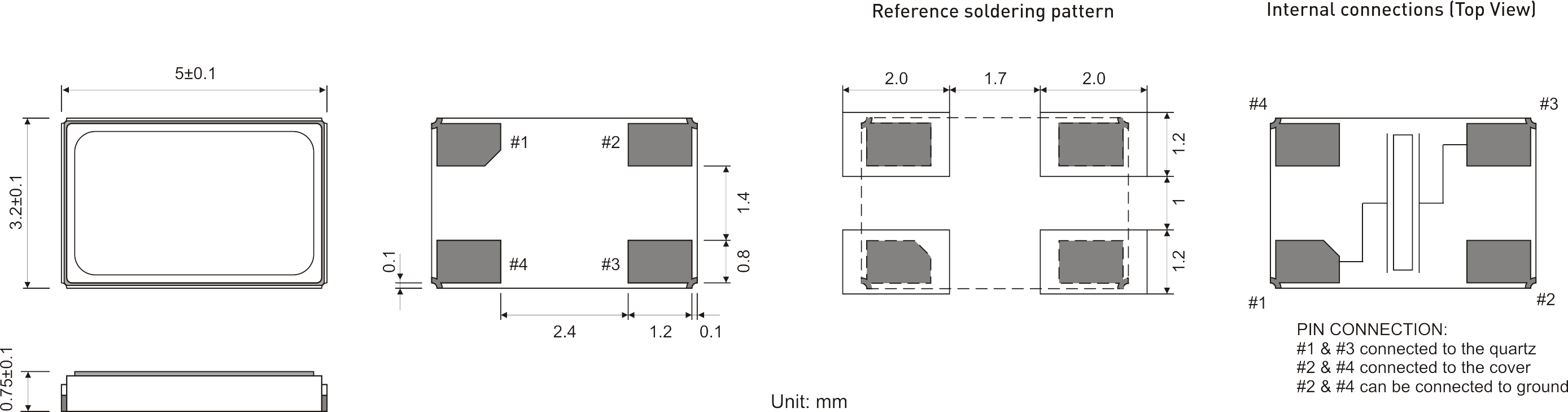

SMD QUARZ 5,0 x 3,2 mm 8.0 - 133.0 MHz

NUMBER OF SOLDER PADS

4

FREQUENCY RANGES (SEPARATED)

8.0 ~ 54.0 MHz Fundamental
54.0 ~ 133.0 MHz 3rd Overtone

STANDARD FREQUENCIES

8.192 MHz / 13.56 MHz / 14.318 MHz / 14.7456 MHz / 15.36 MHz / 16.0 MHz / 19.2 MHz / 19.66 MHz / 20.0 MHz / 22.5792 MHz / 24.0 MHz / 25.0 MHz / 26.0 MHz / 27.0 MHz / 27.12 MHz / 29.4912 MHz / 32.0 MHz / 36.0 MHz / 40.0 MHz / 48.0 MHz / 50.0 MHz

FREQUENCY TOLERANCES AT 25°C

±8 ppm ~ ±50 ppm

LOAD CAPACITANCE (CL)

6 pF ~ 50 pF or Series

WORKING TEMPERATURE RANGES

0/+50°C ~ -40/+125°C

SHUNT CAPACITANCE C0

3 pF max.

DRIVE LEVEL Fundamental

100 μW typ. / 200 μW max. (300 μW available on request)

DRIVE LEVEL 3rd Overtone

100 μW typ. / 200 μW max. (300 μW available on request)

AGING

±2 ppm per year standard (±1 ppm available as option)

INSULATION RESISTANCE

>500 MΩ DC/100V ±10%

STORAGE TEMPERATURE

-55°+125°C

DELIVERY FORM

Tape and Reel (1.000 pcs per reel)
