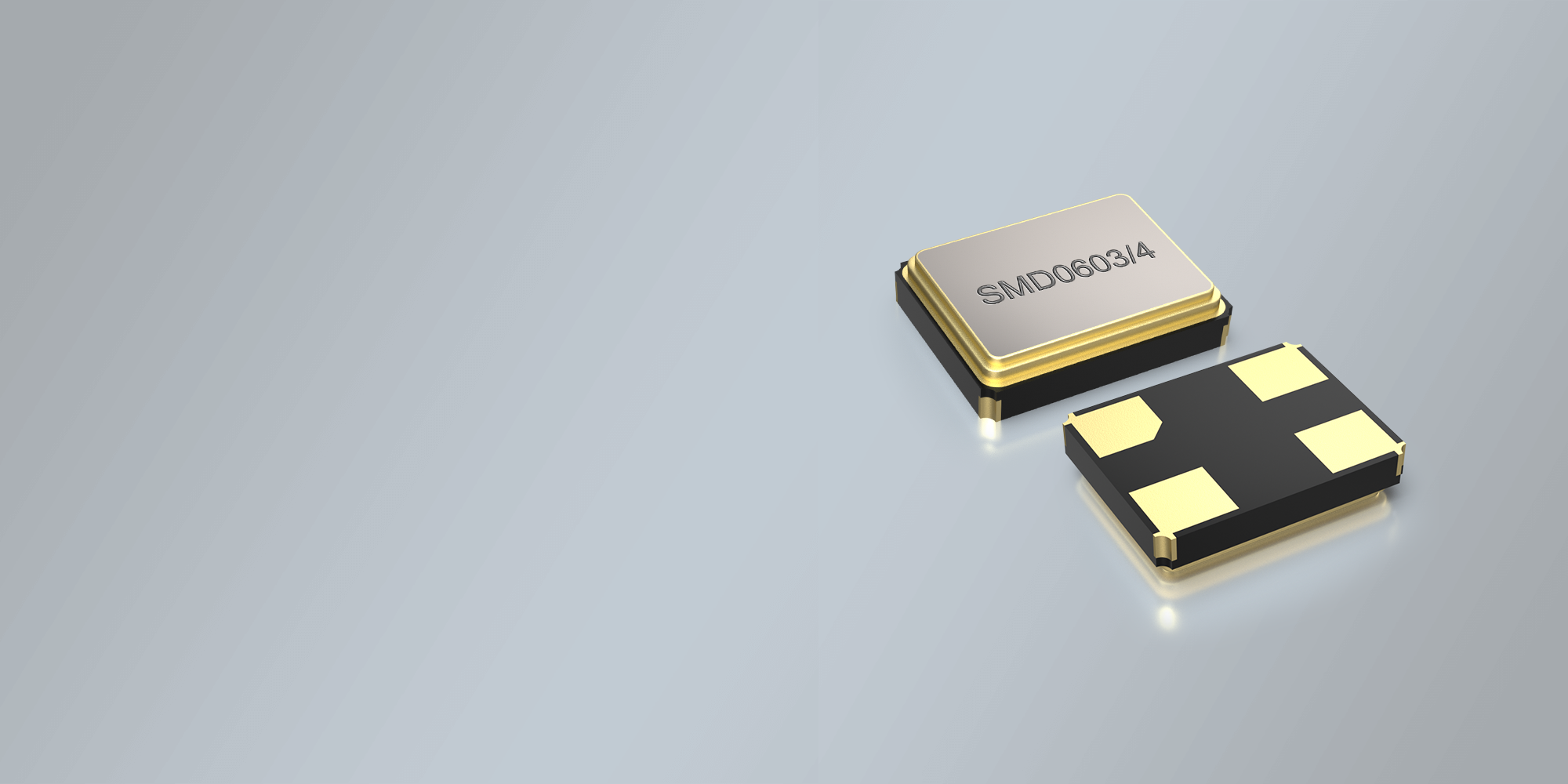

SMD QUARZ 6,0 x 3,5 mm 8.0 - 80.0 MHz
- SMD Schwingquarz 6,0 x 3,5 mm
- Hohe Zuverlässigkeit zum günstigen Preis
- Erweiterter Temperaturbereich bis -40/+125°C verfügbar
- Frequenztoleranz von ±10ppm@+25°C, enge Temperaturstabilitäten und minimale Alterungswerte lieferbar
- Exzellenter Taktsignal Generator für CPU's
- Qualifiziert für den Einsatz in Automotive Anwendungen
-
Produkt Name
SMD Quartz Crystal
-
Package
SMD Ceramic/4pad
-

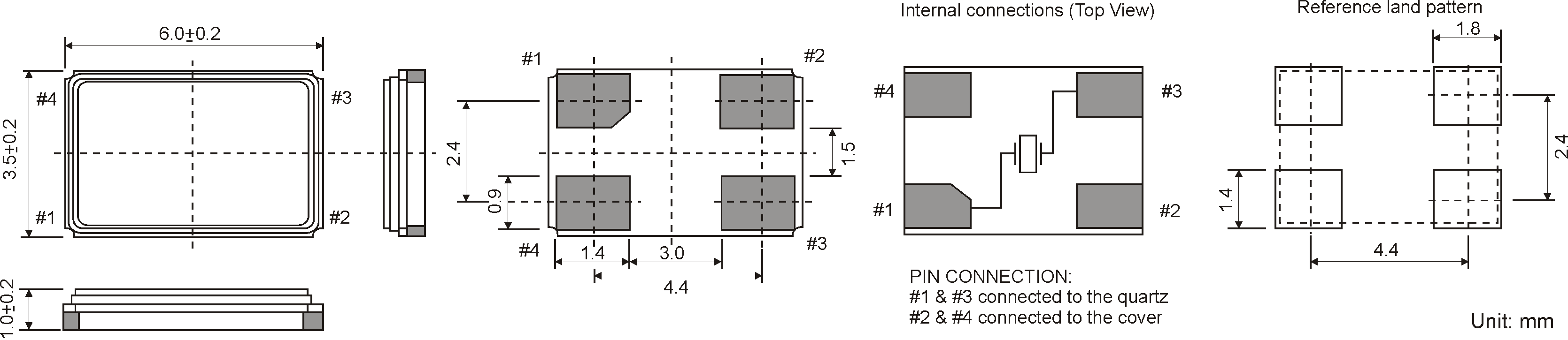

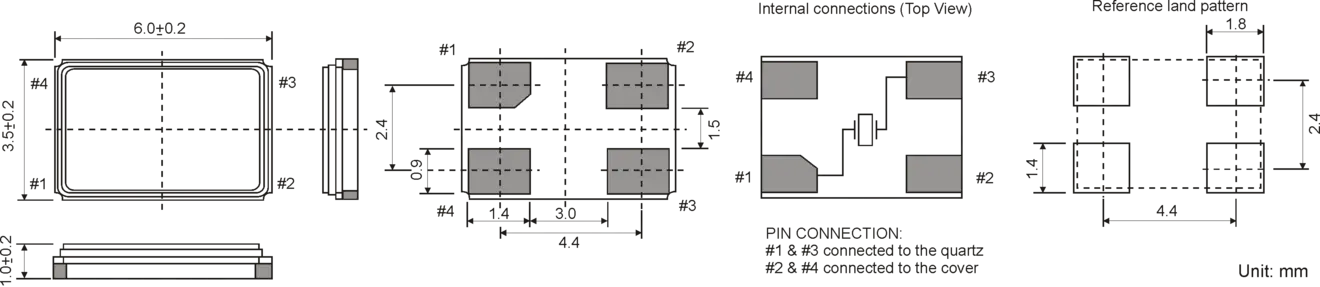

Dimensions in mm (W x D x H)
6.0 x 3.5 x 1.1 mm
-
Frequency Range
8.00 - 80.00 MHz
-
NUMBER OF SOLDER PADS
4
-
FREQUENCY RANGES (SEPARATED)
8.00 ~ 50.0 MHz AT-FUNDAMENTAL
40.0 ~ 80.0 MHz 3rd Overtone -
STANDARD FREQUENCIES
8.0 MHz / 8.192 MHz / 9.84375 MHz / 10.0 MHz / 10.245 MHz / 10.368 MHz / 11.0592 MHz / 12.0 MHz / 12.8 MHz 13.2256 MHz / 13.568 MHz 20.0 MHz / 24.0 MHz / 27.12 MHz / 32.0 MHz / 32.768 MHz / 36.0 MHz / 40.0 MHz / 44.545 MHz / 48.0 MHz / 50.0 MHz
-
FREQUENCY TOLERANCES AT 25°C
±5 ppm ~ ±50 ppm
-
LOAD CAPACITANCE (CL)
6 pF ~ 50 pF or Series
-
WORKING TEMPERATURE RANGES
0/+50°C ~ -40/+125°C
-
SHUNT CAPACITANCE C0
7 pF max.
-
DRIVE LEVEL
0.01 mW ~ 0.1 mW standard (optional 0.5 mW available)
-
AGING
±2 ppm per year standard (optional ±1 ppm available)
-
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
-
STORAGE TEMPERATURE
-55°+125°C
-
DELIVERY FORM
Tape and Reel (1.000 pcs per reel)
±10 ppm | ±15 ppm | ±20 ppm | ±30 ppm | ±50 ppm | |
---|---|---|---|---|---|
0/70 °C | • | • | • | • | • |
-10/60 °C | • | • | • | • | • |
-20/70 °C | • | • | • | • | • |
-40/85 °C | • | • | • | • | |
-40/125 °C | • | ||||
0/50 °C | • | • | • | • | • |
