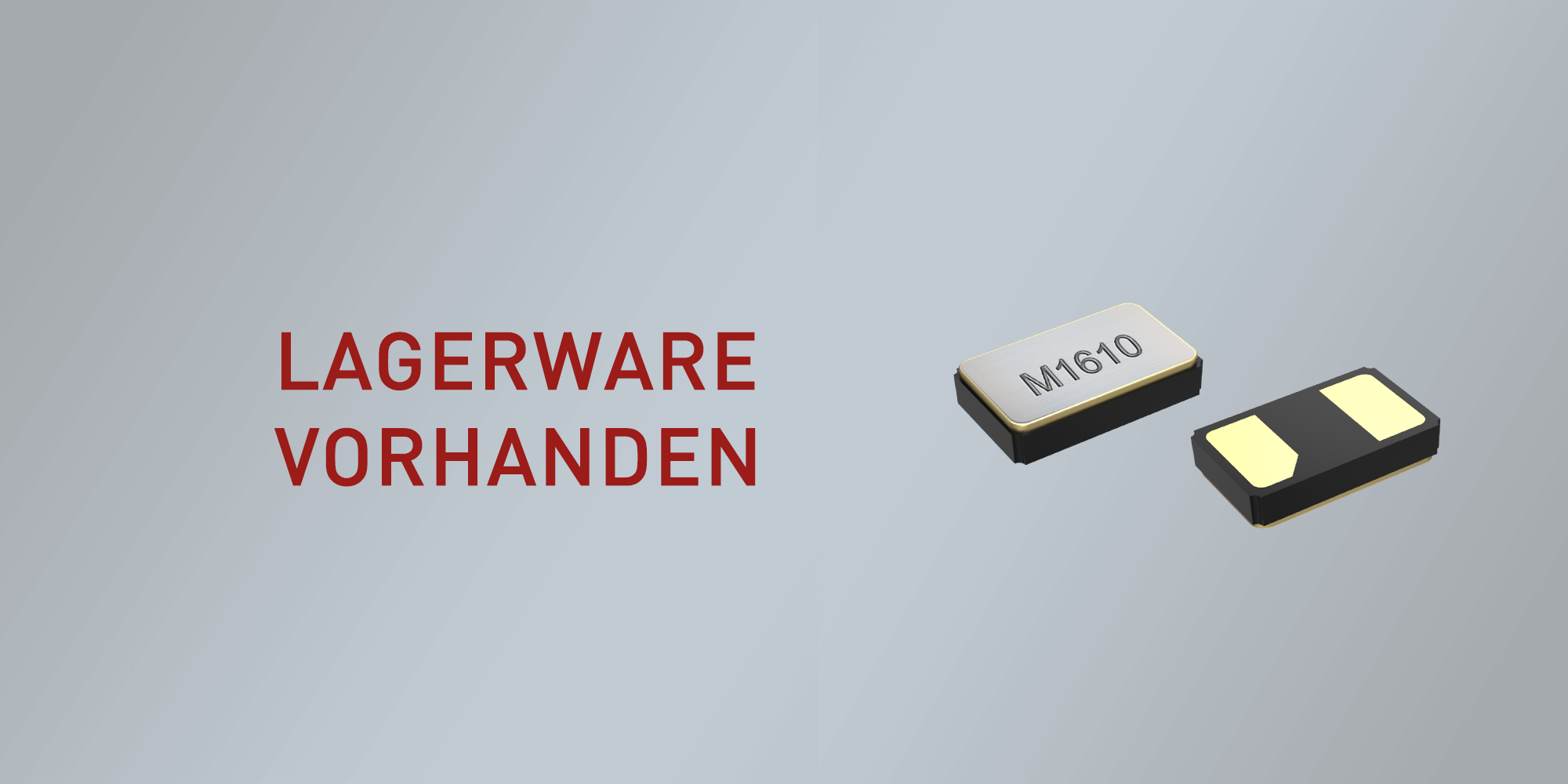

SMD UHRENQUARZ 1,6 x 1,0 mm 32.768 kHz

SMD UHRENQUARZ 1,6 x 1,0 mm 32.768 kHz

  • Top Performance und exzellente Langlebigkeit zum günstigen Preis
  • Ultra Low-Profile Gehäuse
  • Betriebstemperaturbereich von -40/+85°C
  • Excellenter Taktsignal Generator für CPU's
  • Typische Anwendungsbereiche: IoT, Metering, Industrial, Health Care, Wearables, Portables, Wireless
  • Product Name

    32.768 kHz Quartz Crystal

  • Package

    SMD Ceramic/2pad

  • Dimensions in mm (W x D x H)

    1.6 x 1.0 x 0.45 mm

  • Frequency Range

    32.768 kHz

  • NUMBER OF SOLDER PADS

    2

  • FREQUENCY TOLERANCES AT 25°C

    ±20 ppm (standard)
    other parameters available on request

  • LOAD CAPACITANCE (CL)

    12.5 pF (standard)
    4,6,7, and 9pF available on request

  • WORKING TEMPERATURE RANGES

    -40/+85°C or -40/+105° or -40/+125°

  • RESONANCE RESISTANCE

    70 kΩ typ. /90 kΩ max.

  • SHUNT CAPACITANCE C0

    1.4 pF typ.

  • TURNOVER TEMPERATURE

    +25°C ±5°C

  • PARABOLIC COEFFICIENT

    -0.04 ppm/°C²

  • DRIVE LEVEL

    0.2 µW typical (0.5 µW max.)

  • AGING

    ±3 ppm max. per year

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • STORAGE TEMPERATURE

    -55°/+125°C

  • DELIVERY FORM

    Tape and Reel (3.000 pcs per reel)

SMD WATCH CRYSTAL 1.6 x 1.0 mm 32.768kHz

DATASHEET: SMD 32.768 kHz QUARTZ CRYSTAL M1610

SMD 32.768 kHz QUARTZ CRYSTAL M1610
