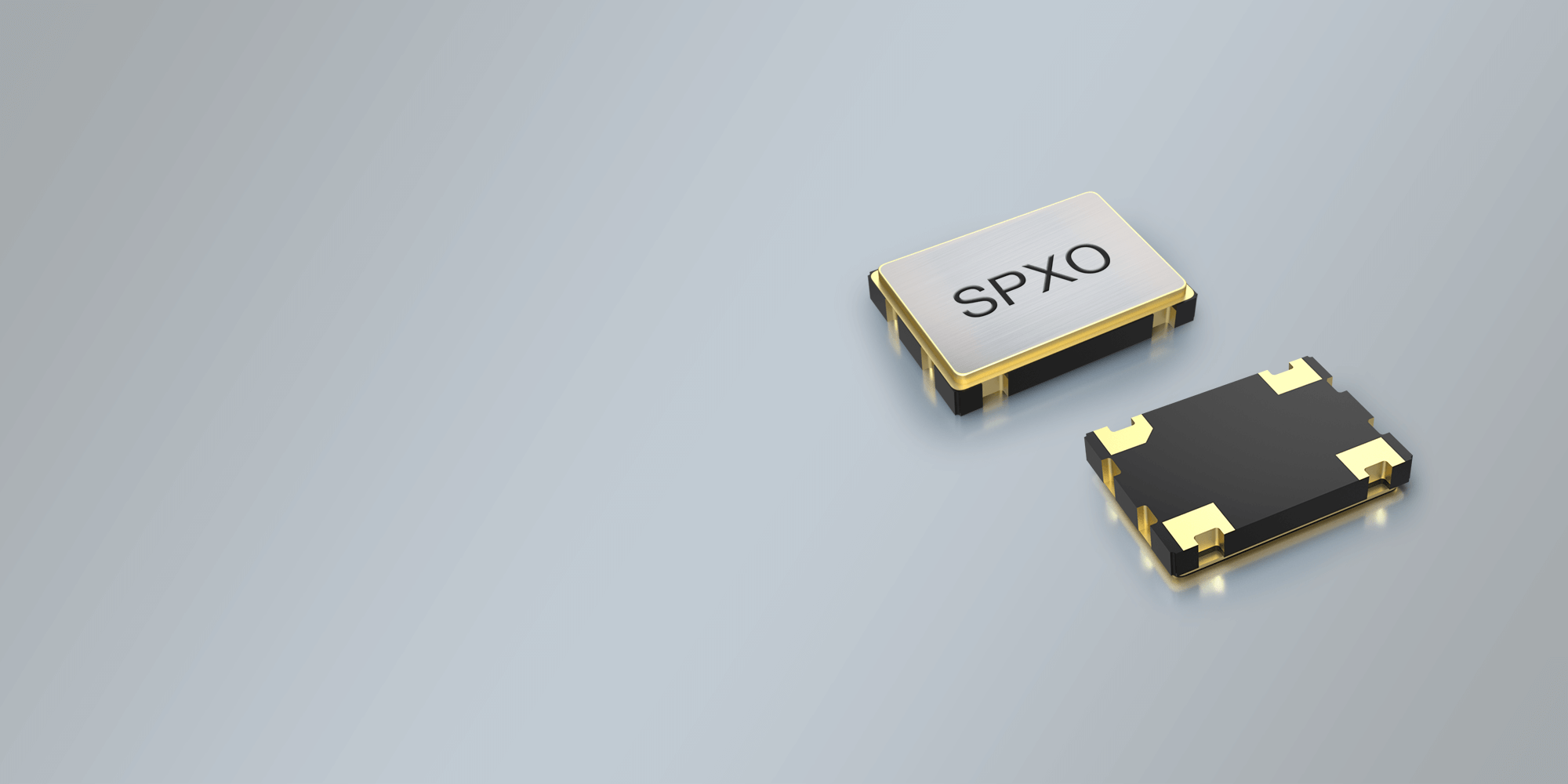

SMD SPXO OSZILLATOR 1,6 x 1,2 mm 1.0 - 285.0 MHz
- Top Performance und exzellente Zuverlässigkeit zum günstigen Preis
- Breiter Frequenzstabilitätbereich von ±20 bis ±100 ppm
- Extrem großer Versorgungsspannungsbereich von 1.8, 2.5, 2.8 und 3.3 VDC
- Höchste Stabilität, exzellente Jitter-Werte, niedriger Stromverbrauch
- Erweiterter Temperaturbereich bis -40/+125°C verfügbar
Produkt Name
SPXO
Package
SMD Ceramic/4pad
Dimensions in mm (W x D x H)
1.6 x 1.2 x 0.5 mm
Frequency Range
1.00 - 285.00 MHz
Standard Frequencies
8.000 MHz 12.000 MHz 16.000 MHz 24.000 MHz 24.576 MHz 25.000 MHz 26.000 MHz 27.000 MHz
48.000 MHz 50.000 MHzFREQUENCY STABILITY
0/+70°C ~ -10/+60°C ±20 ~ ±100 ppm
-20/+70°C ±20 ~ ±100 ppm
-40/+85°C ±25 ~ ±100 ppm
-40/+105°C ±50 ~ ±100 ppm
-40/+125°C ±100 ppm
±20 ppm and ±25ppm frequency stability: The frequency stability of about ±20 or ±25 ppm contains the
frequency tolerance at 25°C, the temperature stability, the supply voltage change of about VDD±10%
and the load change of about ±10%. The aging after first year is ±3ppm max. and has to be added.
>=±50ppm frequency stability: The frequency stability of about >= ±50 ppm contains the frequency
tolerance at 25°C, the temperature stability, the supply voltage change of about VDD±10%, the load
change of about ±10% and the aging after first year.Frequency Range
1.0 ~ 285.0 MHz
DATASHEET: SMD SPXO: 1.6x1.2mm 1.8-3.3 VDC MHz
