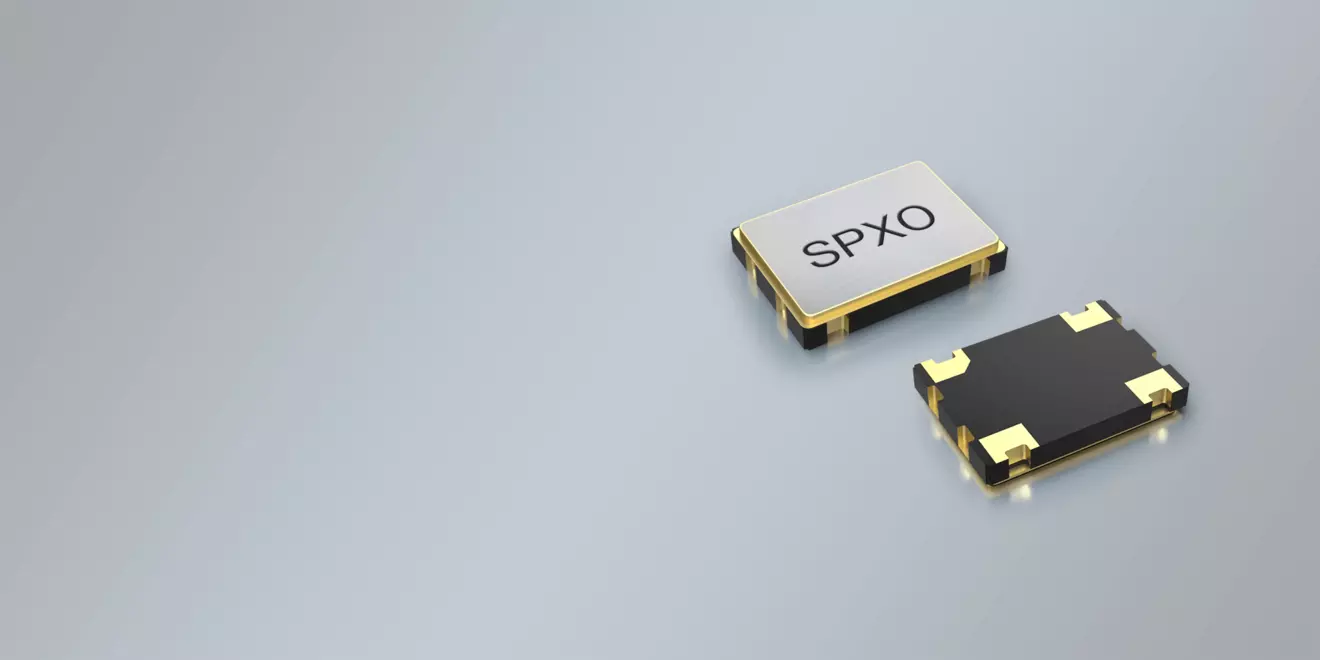

SMD SPXO OSZILLATOR 2,0 x 1,6 mm 1.0 -285.0 MHz
- Top Performance und exzellente Zuverlässigkeit zum günstigen Preis
- Breiter Frequenzstabilitätbereich von ±20 bis ±100 ppm
- Extrem großer Versorgungsspannungsbereich von 1.8, 2.5, 2.8 und 3.3 VDC
- Höchste Stabilität, exzellente Jitter-Werte, niedriger Stromverbrauch
- Erweiterter Temperaturbereich bis -40/+105°C verfügbar
Produkt Name
SPXO
Package
SMD Ceramic/4pad
Dimensions in mm (W x D x H)
2.0 x 1.6 x 0.8 mm
Frequency Range
1.00 - 285.00 MHz
FREQUENCY RANGE VS SUPPLY VOLTAGE
1.8 VDC = 0.4 ~ 80.0 MHz
2.5 VDC = 0.4 ~ 80.0 MHz
2.8 VDC = 0.4 ~ 80.0 MHz
3.3 VDC = 0.4 ~ 80.0 MHzFREQUENCY STABILITY
0/+70°C ~ -10/+60°C ±20 ~ ±100 ppm
-20/+70°C ±20 ~ ±100 ppm
-40/+85°C ±25 ~ ±100 ppm
-40/+105°C ±50 ~ ±100 ppm
-40/+125°C ±100 ppm
±20 ppm and ±25ppm frequency stability: The frequency stability of about ±20 or ±25 ppm contains the
frequency tolerance at 25°C, the temperature stability, the supply voltage change of about VDD±10%
and the load change of about ±10%. The aging after first year is ±3ppm max. and has to be added.
>=±50ppm frequency stability: The frequency stability of about >= ±50 ppm contains the frequency
tolerance at 25°C, the temperature stability, the supply voltage change of about VDD±10%, the load
change of about ±10% and the aging after first year.OPERATING TEMPERATURE RANGE
-10/+60°C ~ -40/+105°C
STORAGE TEMPERATURE RANGE
-55/+125°C
DELIVERY FORM
TAPE & REEL
RoHS
Lead free and RoHS 2 compliant
Standard Frequencies
0.032768 MHz 2.0000 MHz 2.0480 MHz 2.4576 MHz 4.0000 MHz 6.0000 MHz 6.1440 MHz 8.0000 MHz
10.0000 MHz 12.0000 MHz 12.2880 MHz 13.0000 MHz 16.0000 MHz 19.0000 MHz 19.2000 MHz 20.0000 MHz
24.0000 MHz 24.5760 MHz 25.0000 MHz 26.0000 MHz 27.0000 MHz 30.0000 MHz 32.0000 MHz 33.0000 MHz
33.3000 MHz 33.3333 MHz 38.4000 MHz 40.0000 MHz 45.1584 MHz 48.0000 MHz 49.1520 MHz 50.0000 MHz
64.0000 MHzFrequency Range
1.0 ~ 285.0 MHz
DATASHEET: SMD SPXO: 2.0x1.6mm 1.8-3.3 VDC MHz
