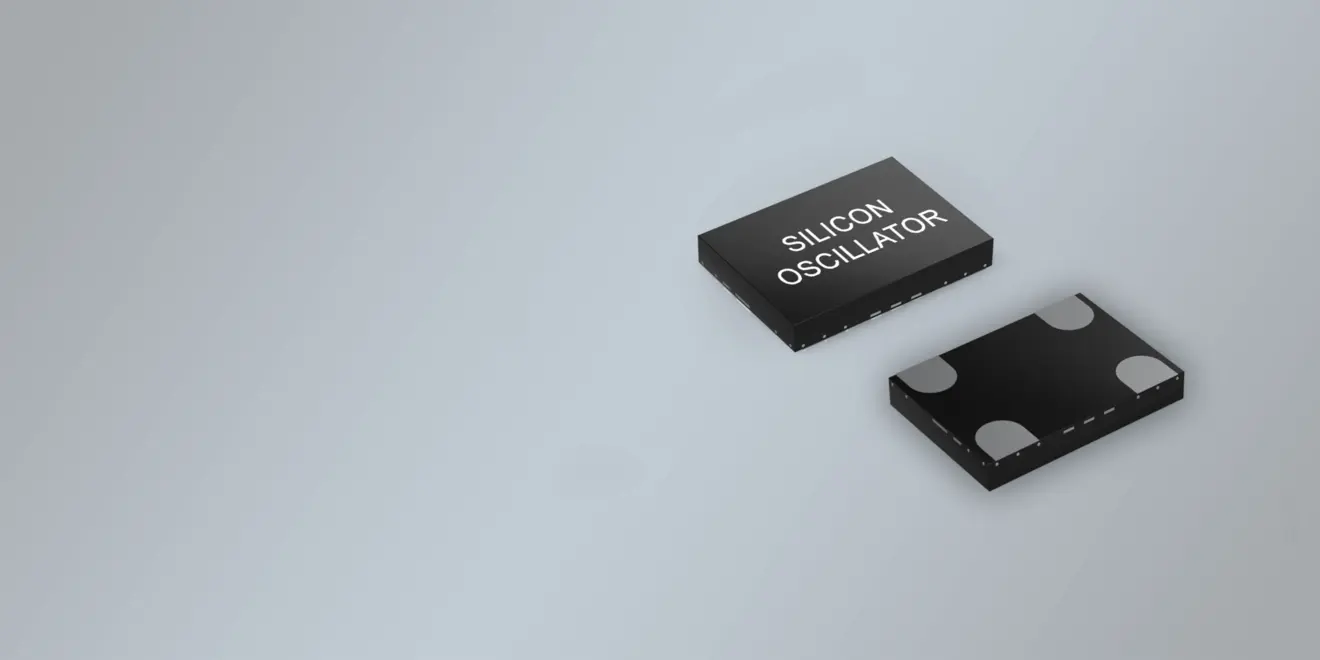

SMD DIFFERENTIAL SPREAD SPECTRUM 1-220 MHz SILIZIUM OSZILLATOR
- Hundertprozentiger direkter Pin-to-Pin-Ersatz von Quarz- und MEMS-basierten Oszillatoren
- Differential Low Power Spread Spectrum Oszillator zum günstigen Preis
- Höchste Langzeitzuverlässigkeit
- Breiter Frequenzbereich von 1 MHz bis 220 MHz
- Extrem niedriger Zyklus-zu-Zyklus Jitter-Wert von 10 ps (standard)
- Niedrige Frequenzstabilität (Spread = OFF) ±25 ppm oder ±50 ppm
- Express-Musterlieferung am gleichen Tag
-
Product Name
LPSSO
-
Package
SMD QFN/4pad
-
Dimensions in mm (W x D x H)
3.2 x 2.5 ~ 7.0 x 5.0
-
Frequency Range
1.00 - 220.00 MHz
-
SUPPLY VOLTAGE
1.8 V to 3.3 V
-
FREQUENCY STABILITY
± 25ppm ~ ±100 ppm (Spread OFF)
-
OPERATING TEMPERATURE RANGE
-20/+70 ~ -40/+85°C
-
STORAGE TEMPERATURE RANGE
-55/+125°C
-
DELIVERY FORM
Bulks or Tubes for sampling
Tape & Reel for serial quantities -
ENVIRONMENTAL REQUIREMENTS
Pb-free, RoHS and REACH compliant
-
Industry's best cycle to cycle jitter, as low as 15ps
• Enable system designers to minimize impact to timing budget
-
System-dependent EMI reduction, up to -17 dB on the third harmonic and -12 dB reduction on fundamental peak power (100MHz spread spectrum frequency)
• Cost-effective EMI reduction with fastest time to market
-
Flexible spread spectrum options
• Optimize EMI performance in system design
-
Programmable voltage support of 1.8V - 3.3V
• Provide designers flexibility of using the same chip for different designs
-
Small form factor
• Save the board space in space-constrained applications
-
Ultra fast lead time
• Reduce inventory overhead
• Mitigate shortage risks
DATASHEET: SMD Differential Spread Spectrum 1-220MHz Oscillator (DLPSSO)
