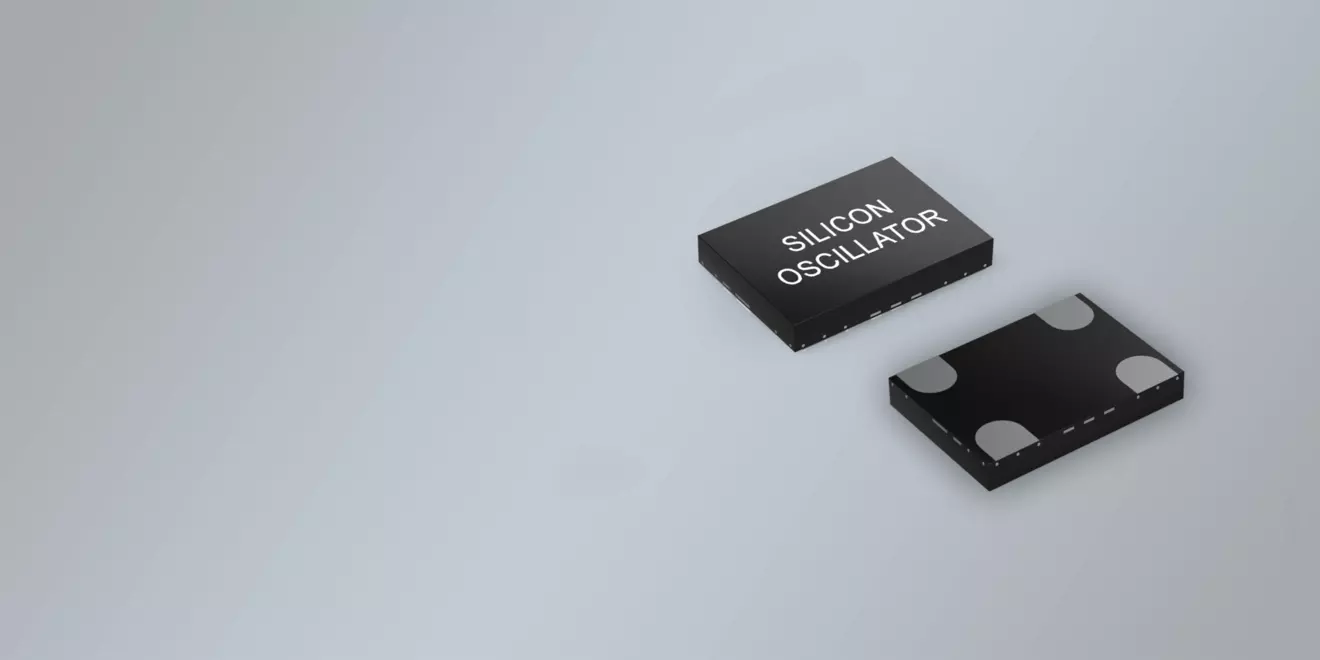

LOW POWER SPREAD SPECTRUM 1-110 MHz OSZILLATOR

SMD LOW POWER SPREAD SPECTRUM 1-110 MHz SILIZIUM OSZILLATOR

  • Hundertprozentiger direkter Pin-to-Pin-Ersatz von Quarz- und MEMS-basierten Oszillatoren
  • Low Power Spread Spectrum Oszillator zum günstigen Preis
  • Höchste Langzeitzuverlässigkeit
  • Spread-off Funktion verfügbar auf Pin 1 bis zu 50 MHz
  • <30 ps Zyklus-zu-Zyklus Jitter-Wert
  • LVCMOS/LVTTL kompatibles Ausgangssignal
  • Express-Musterlieferung am gleichen Tag
  • Product Name

    LPSSO

  • Package

    SMD QFN/4pad

  • Dimensions in mm (W x D x H)

    5.0 x 3.2 ~ 7.0 x 5.0

  • Frequency Range

    1.00 - 110.00 MHz

  • SUPPLY VOLTAGE

    1.8 V to 3.3 V

  • FREQUENCY STABILITY

    ± 50ppm to ±100 ppm (Spread OFF)

  • OPERATING TEMPERATURE RANGE

    -20/+70 ~ -40/+85°C

  • STORAGE TEMPERATURE RANGE

    -55/+125°C

  • DELIVERY FORM

    Bulks or Tubes for sampling
    Tape & Reel for serial quantities

  • ENVIRONMENTAL REQUIREMENTS

    Pb-free, RoHS and REACH compliant

  • Flexible spread options supporting up to 12 dB EMI reduction

    • Up to 12dB EMI reduction

  • World best cycle to cycle jitter of < 30 ps

    • Minimize impact to system timing budget

  • Lowest power consumption of any programmable oscillator

    • Extends battery life
    • Reserves more power budget for system designers

  • 3ms typical resume time

    • Enable system to go in and out of standby mode quickly, conserving battery power

  • Extensive programmability

    • Any frequency between 1 to 110 MHz with 5 decimal place accuracy
    • Supply voltage of 1.8V, 2.5V, 2.8V and 3.3V
    • Frequency stability from ±50PPM to ±100PPM
    • Adjustable rise and fall time

  • Ultra fast lead time

    • Reduce inventory overhead
    • Mitigate shortage risks

DATASHEET: SMD Spread Spectrum 1-110MHz Oscillator (LPSSO)

Spread Spectrum LPSSO 1-110MHz Oscillator
